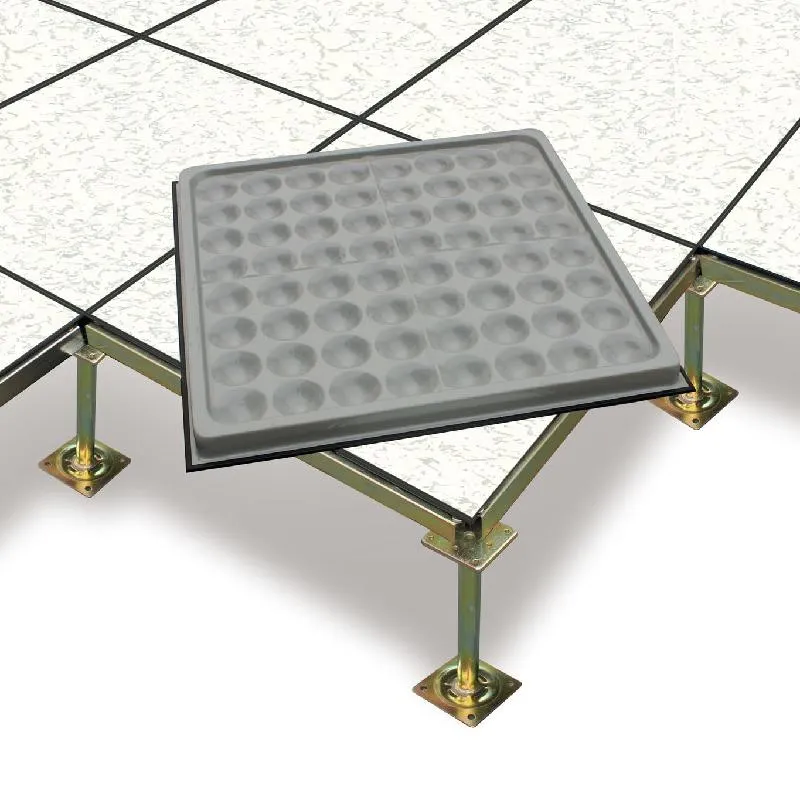

Engineered for contemporary facilities, FINECO's raised floor panels 600x600 provide remarkable durability, seamless cable management, and superior load-bearing capacity. Their modular construction enables rapid installation and flexibility for future rearrangements. Featuring anti-static and fire-resistant characteristics, these panels guarantee a safer, more organized space. Ideal for data centers, offices, and industrial areas-enhance efficiency and aesthetics with a long-lasting solution.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's raised floor panels 600x600 provide sturdy and dependable solutions for the infrastructure needs of today. Built from high-strength, anti-corrosion steel and coated with fire-resistant materials, they offer outstanding load-bearing capacity and durable performance. The modular nature of the design enables rapid installation, easy reconfiguration, and seamless access to underfloor utilities, enhancing operational efficiency. Integrated cable management channels help optimize airflow and organize power/data cabling, minimizing clutter. Suitable for demanding environments such as data centers, industrial facilities, command control rooms, and laboratories, these panels ensure safety, flexibility, and compliance with international standards, meeting dynamic spatial requirements with minimal maintenance.
Product details

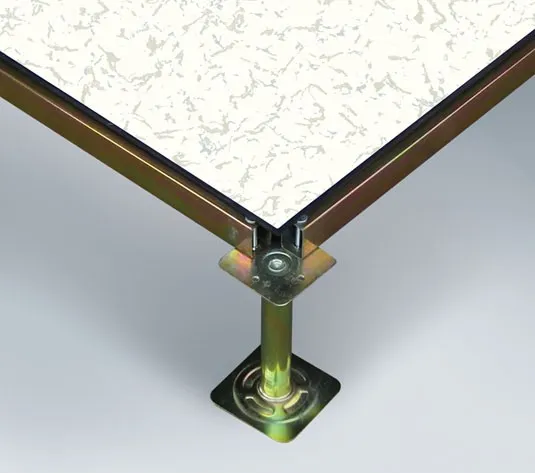

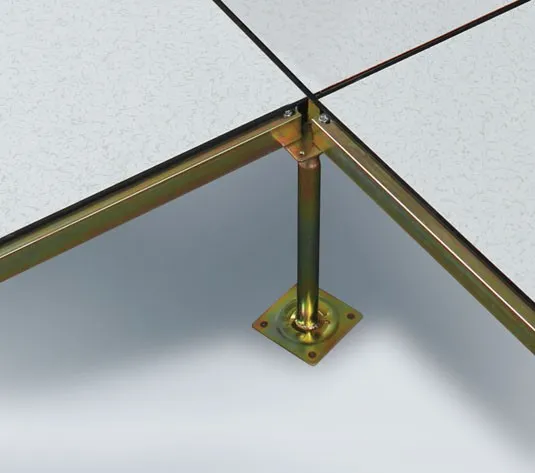

FINECO's raised floor panels 600x600 are crafted with precise engineering for optimal functionality. The ESD edge trims guarantee seamless conductivity and static dissipation across the entire floor system. Each panel undergoes a rigorous epoxy powder-coated anti-rust treatment, providing protection against corrosion in humid or harsh conditions. Multiple anti-static laminate choices (HPL, PVC, ceramic) allow for customizable looks while keeping the surface resistance at 10^4–10^9Ω. The reinforced bolted stringers enhance structural stability, enabling support of point loads up to 890kg. The fire-rated cores meet ASTM E84 Class 1 standards. Optional gasket-sealed edges create air-tight compartments, making them suitable for clean room or pressurized applications, highlighting their versatility in terms of technical specifications.
Product Qualification
FINECO's raised floor panels 600x600 are created to adhere to the highest standards of quality and durability, beginning with premium materials and precise manufacturing methods. Key components are fashioned from high-grade ST14 and SPCC steels, renowned for their exceptional strength, corrosion resistance, and formability, ensuring structural robustness under difficult conditions.
The combination of lightweight foam concrete further enhances performance, reducing the total weight while offering superior thermal insulation, sound absorption, and eco-friendly properties. Manufacturing employs heavy-duty, high-tonnage presses to provide consistent pressure and careful shaping, eliminating material flaws and ensuring dimensional accuracy.
The combination of advanced materials and industrial-level equipment yields products that constantly exceed industry standards for longevity, reliability, and operational superiority, satisfying the strictest customer demands.
Shipping and Package
FAQ
Q: 1. Are raised floor panels 600x600 fire-resistant?
A: A number of raised floor panels 600x600 conform to fire safety requirements, e.g., carrying a Class A rating. The employment of materials like steel or fire-retardant laminates lessens risks. However, check local codes and make certain that proper fire suppression systems are in operation.
Q: 2. What is the typical load capacity of a raised floor panels 600x600?
A: Load-bearing capabilities differ, with typical systems able to support 662 to 2000 pounds per square foot (psf). High-density regions such as data centers might need 2,000+ psf. For particular installations, refer to the manufacturer's specifications.
Q: 3 How do raised floor panels 600x600 improve airflow in data centers?
A: By developing a plenum underneath the floor, cool air is able to be distributed through perforated tiles or vents to server racks. Hot air is emitted above, creating a closed-loop cooling system that enhances energy efficiency and avoids the development of hotspots.
Q: 4. What issues might I encounter with raised floor panels 600x600?
A: Potential problems might involve panels deforming due to excessive load, cable congestion blocking airflow, or loose tiles presenting trip hazards. These risks can be mitigated by carrying out regular maintenance and obeying load limits.
Q: 5.Where are raised floor panels 600x600 primarily used?
A: Raised floor panels 600x600 find extensive application in data centers, computer rooms, laboratories, hospital operating rooms, offices, and other areas necessitating efficient cable management and environmental control.
