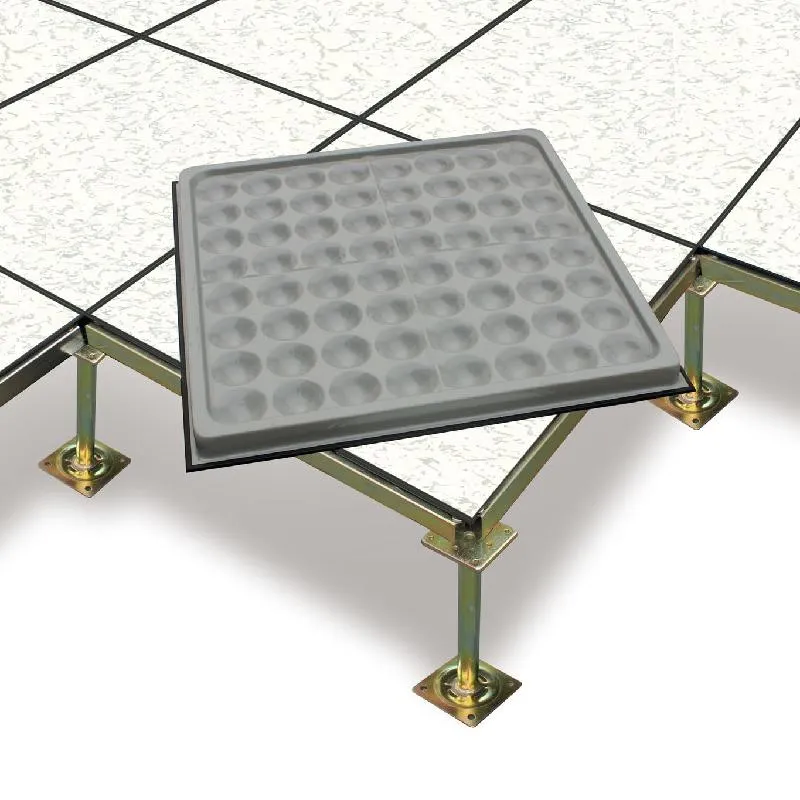

Engineered for cutting-edge facilities, FINECO's raised computer floor panels provide remarkable durability, effortless cable handling, and exceptional load-bearing capacity. Their modular nature allows for quick installation and ease of reconfiguration. Endowed with anti-static and fire-resistant features, they create a safer and more structured environment. Suitable for data centers, offices, and industrial spaces-elevate efficiency and aesthetics with a solution designed to endure.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's raised computer floor panels supply strong and reliable solutions for the demands of modern infrastructure. Made of high-strength, anti-corrosion steel with fire-resistant coatings, these panels offer remarkable load-bearing capacity and enduring durability. The modular nature enables rapid installation, easy reconfiguration, and seamless access to underfloor utilities, boosting operational efficiency. Built-in cable management channels enhance airflow and organize power/data cabling while reducing clutter. Perfect for demanding environments like data centers, industrial facilities, command control rooms, and laboratories, steel raised floors ensure safety, adaptability, and adherence to international standards, fulfilling dynamic spatial requirements with little maintenance.
Product details
FINECO's raised computer floor panels are distinguished by their precision-engineered details for superior performance. ESD edge trims ensure flawless conductivity and static dissipation across the entire floor system. Every panel is treated with a stringent epoxy powder-coated anti-rust solution, guaranteeing resistance to corrosion in moist or severe environments. A selection of anti-static laminate options (HPL, PVC, ceramic) provides customizable aesthetics while maintaining 10^4–10^9Ω surface resistance. Reinforced bolted stringers enhance structural stability, supporting point loads up to 890kg. Fire-rated cores comply with ASTM E84 Class 1 standards. Optional gasket-sealed edges create air-tight compartments for clean room or pressurized applications, highlighting the panels' versatility in technical specifications.
Product Qualification
FINECO's raised computer floor panels are built to the most stringent quality and durability standards. They originate from premium materials and are manufactured with precision. The essential components employ high-grade ST14 and SPCC steels, recognized for their exceptional strength, corrosion resistance, and formability, guaranteeing structural integrity in difficult conditions.
The integration of lightweight foam concrete creates a synergistic effect. It reduces the overall weight and provides superior thermal insulation, sound absorption, and eco-friendly properties. In the manufacturing process, heavy-duty high-tonnage presses are utilized to ensure uniform pressure and precise shaping, eliminating material defects and guaranteeing dimensional accuracy. The combination of the unique material properties and the advanced manufacturing process results in a high-performance product.
The utilization of advanced materials together with industrial-grade equipment results in products with outstanding performance. These products constantly exceed industry benchmarks for durability, reliability, and operational excellence, ensuring the satisfaction of customers with the highest
Shipping and Package
FAQ
Q: 1.Where are raised computer floor panels primarily used?
A: In a variety of settings, such as data centers, computer rooms, laboratories, hospital operating rooms, and offices, there is a need for efficient cable management and environmental control. To meet these requirements, raised computer floor panels are widely used. Additionally, they find application in other locations where such needs exist.
Q: 2. How do raised computer floor panels improve airflow in data centers?
A: The formation of a plenum under the floor facilitates the distribution of cool air to server racks through perforated tiles or vents. The hot air is then expelled above, creating a closed-loop cooling system. This cooling system plays a crucial role in enhancing energy efficiency and preventing hotspots, which is essential for the optimal performance of server equipment.
Q: 3. What materials are raised computer floor panels made of?
A: Panels are frequently constructed with steel and feature a surface of cement or laminate, or they can be made of aluminum for reduced weight. Additionally, woodcore and calcium sulphate core options are available. Pedestals and supports are commonly crafted from steel or aluminum. In settings with electronic equipment, anti-static finishes are prevalent to avoid static discharge.
Q: 4. How do I maintain a raised computer floor panels?
A: Regular inspections for loose panels or damaged supports are absolutely essential. Furthermore, vacuuming or sweeping the underfloor space is important to remove debris. It is also crucial to avoid heavy point loads that go beyond the rated capacity. In addition, damaged panels should be replaced promptly, and cable organization should be ensured to prevent any obstructions.
Q: 5. What issues might I encounter with raised computer floor panels?
A: To address possible concerns, regular maintenance plays a crucial role. Additionally, strictly following load limits can help prevent issues such as panel deformation. Ensuring cables are properly managed to avoid congestion and securing tiles firmly can mitigate the risks of airflow obstruction and trip hazards.
