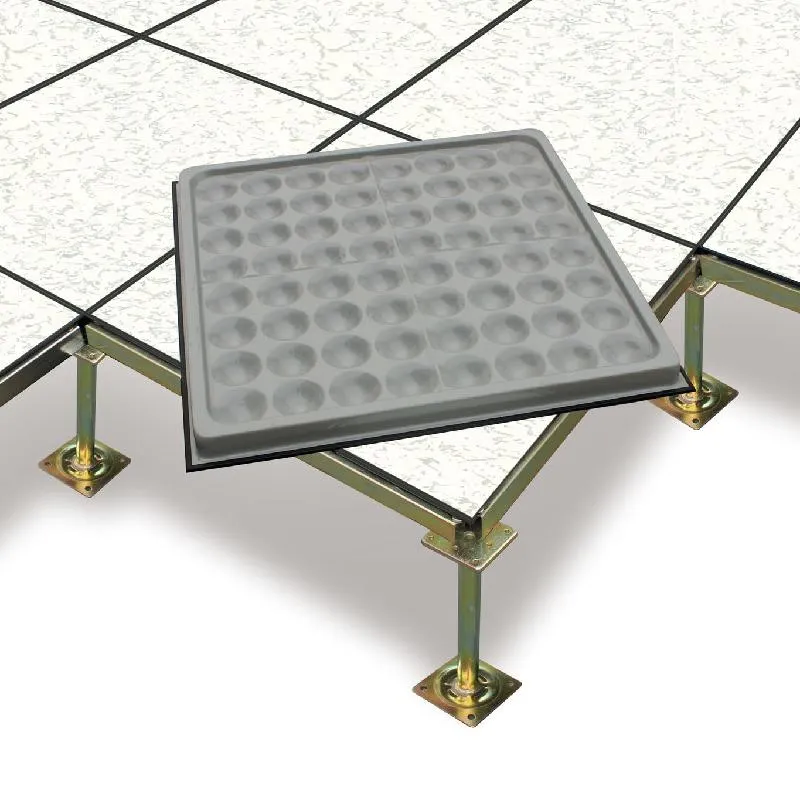

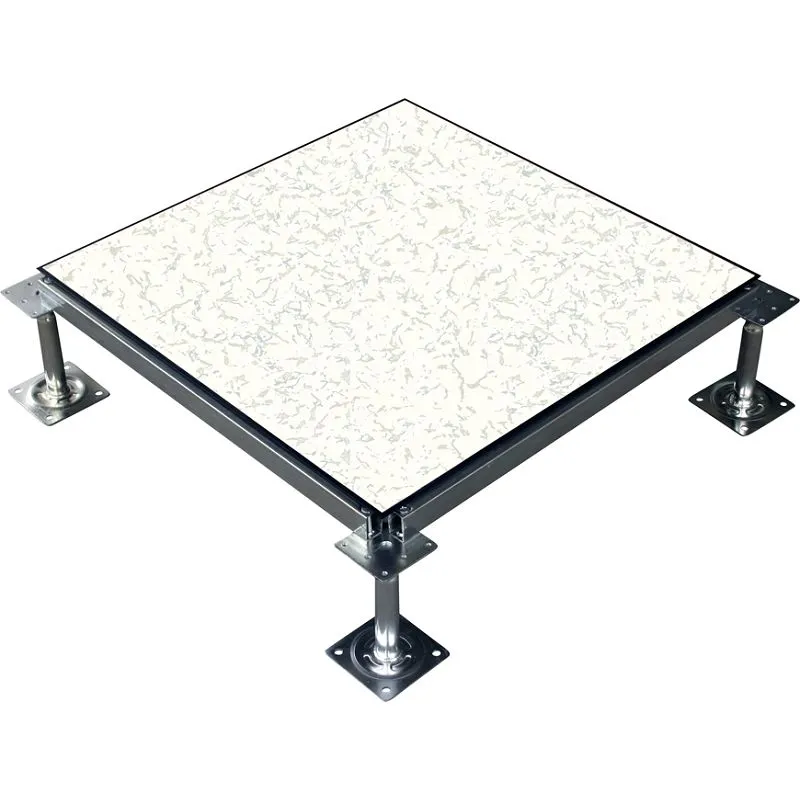

FINECO's data center raised floor panels are ideal for modern facilities, providing exceptional durability and effective cable management. They feature a high load-bearing capacity, ensuring strength and durability. The modular design allows for quick and convenient installation and flexibility for reconfiguration when required. With anti-static and fire-resistant properties, they create a safer and more organized environment. Suitable for data centers, offices, and industrial spaces, they provide a long-lasting solution that enhances both efficiency and aesthetics.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
Engineered for the needs of modern facilities, FINECO's data center raised floor panels deliver exceptional durability and effective cable management. Their high load-bearing capacity ensures stability and durability, making them ideal for demanding environments. The modular design allows for quick and convenient installation, as well as flexibility for reconfiguring spaces to meet changing requirements. With anti-static and fire-resistant properties, they provide a safer and more organized environment. Suitable for data centers, offices, and industrial spaces, these panels offer a long-lasting solution that enhances efficiency and aesthetics.
Product details

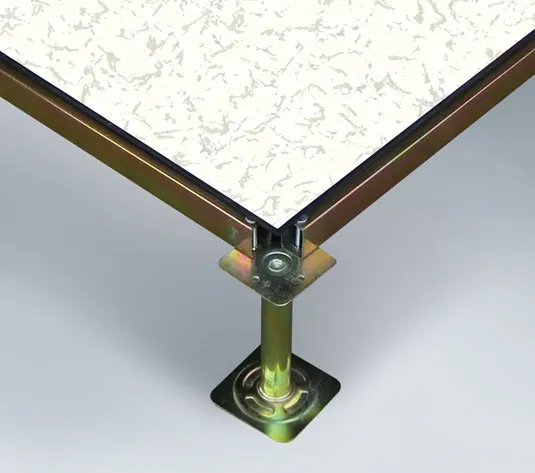

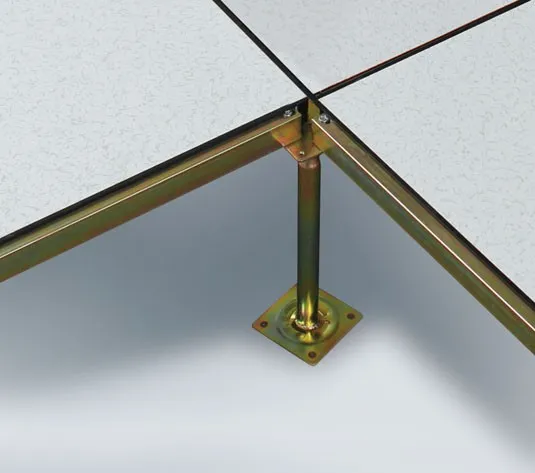

FINECO's data center raised floor panels feature precision-crafted details for exceptional performance. ESD edge trims ensure seamless conductivity and effective static dissipation across the floor system. Each panel is treated with a durable epoxy powder-coated anti-rust process, guaranteeing resistance to corrosion in humid or harsh conditions. Multiple anti-static laminate options (HPL, PVC, ceramic) provide customizable aesthetics while maintaining a surface resistance of 10^4–10^9Ω. Reinforced bolted stringers enhance structural stability, supporting point loads up to 890kg. The fire-rated cores meet ASTM E84 Class 1 standards. Optional gasket-sealed edges create air-tight compartments, perfect for clean room or pressurized applications, showcasing the panels' versatility in technical specifications.
Product Qualification
FINECO's data center raised floor panels are created to the highest quality and durability specifications, starting with the use of premium materials and precise manufacturing methods. The main components are constructed from high-grade ST14 and SPCC steels, which are well-known for their exceptional strength, resistance to corrosion, and formability, ensuring that the panels possess structural integrity in demanding situations. These features not only extend the product's lifespan but also reduce maintenance costs, providing a long-term solution for your data center needs.
The integration of lightweight foam concrete significantly enhances performance. It reduces overall weight while providing excellent thermal insulation, noise absorption, and environmentally friendly characteristics. Production employs heavy-duty, high-tonnage presses to achieve uniform pressure and precise shaping, eliminating material defects and ensuring dimensional accuracy.
Through the combination of advanced materials and high-grade industrial equipment, the products generated consistently outshine industry benchmarks for longevity, reliability, and operational brilliance, meeting the most rigorous expectations of customers.
Shipping and Package
FAQ
Q: 1. What is the typical load capacity of a data center raised floor panels?
A: Variations exist in load capacities, and standard systems have the ability to support 662 to 2000 pounds per square foot (psf). High-density locations such as data centers may demand a load capacity of 2,000+ psf. Be sure to examine the manufacturer's specifications for specific installations.
Q: 2. How long does data center raised floor panels installation take?
A: Installation schedules are determined by the size and complexity of the area. Projects in smaller spaces can be completed in a matter of days, while those in large data centers may extend up to several weeks. Adequate planning and coordination with HVAC and electrical teams is essential.
Q: 3. Can I install a data center raised floor panels myself?
A: While you can attempt DIY installation for simple layout scenarios, it's wise to seek professional installation for more complex ones. Incorrectly putting it together may have a negative impact on structural integrity, cable management, or safety.
Q: 4. Can data center raised floor panels be adjusted after installation?
A: Yes. The adjustable pedestals facilitate height adjustments to cater to new equipment or the rerouting of cables. It is possible to add or remove panels, rendering data center raised floor panels highly adaptable to changing requirements.
Q: 5. Where can I find more resources or support?
A: Connect with your data center raised floor panels supplier for access to technical guides, installation videos, and on-site consultation services. Industry associations, for example, BICSI (Building Industry Consulting Services International), also provide best practices and training materials.
