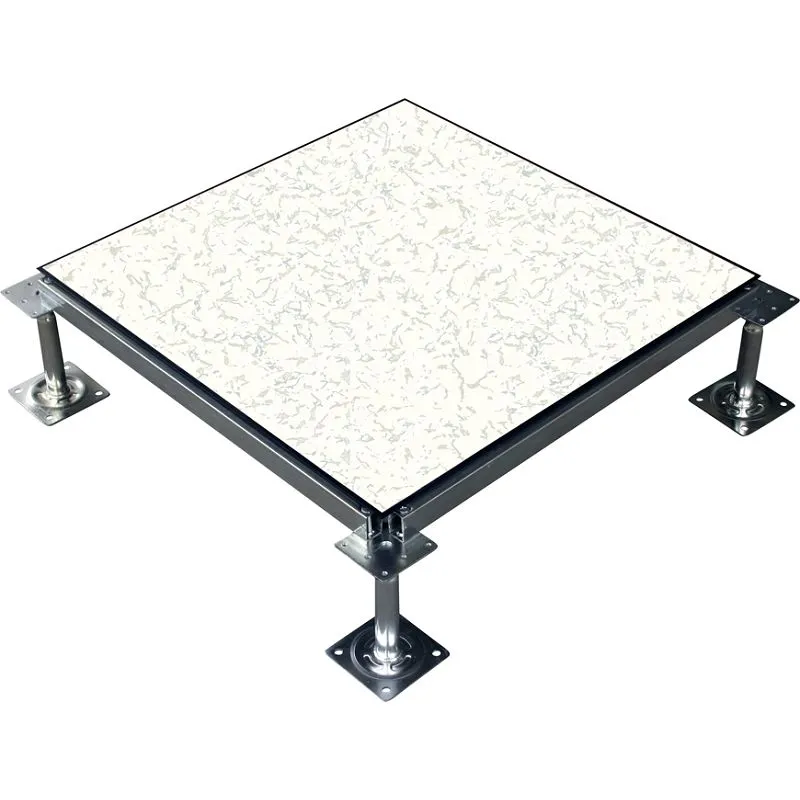

Suited for the demands of modern facilities, FINECO's basement raised floor panels exhibit remarkable durability, effortless cable organization, and a high load-bearing capacity. Their modular construction enables swift installation and flexibility for adjustments. With anti-static and fire-resistant attributes, they promote a safer and more structured environment. For data centers, offices, and industrial spaces, these panels present an enduring solution that enhances both efficiency and visual appeal.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's basement raised floor panels deliver strong and dependable solutions to meet the demands of contemporary infrastructure. Made from high-strength, anti-corrosion steel and featuring fire-resistant coatings, these panels boast exceptional load-bearing capacity and durability that stands the test of time. The modular design makes for quick installation, easy reconfiguration, and smooth access to underfloor utilities, thereby enhancing operational efficiency. With integrated cable management channels, airflow is optimized and power/data cabling is neatly organized, reducing clutter. Perfect for challenging environments like data centers, industrial facilities, command control rooms, and laboratories, these steel raised floors guarantee safety, adaptability, and adherence to international standards. They support dynamic spatial needs while requiring minimal maintenance.
Product details
FINECO's basement raised floor panels are crafted with precision-engineered details to ensure optimal performance. ESD edge trims are in place to ensure seamless conductivity and static dissipation across the whole floor system. Every panel goes through a rigorous epoxy powder-coated anti-rust treatment process, guaranteeing its resistance to corrosion in humid or harsh environments. There are multiple anti-static laminate options (HPL, PVC, ceramic) to choose from, providing customizable aesthetics and maintaining a surface resistance of 10^4–10^9Ω. Reinforced bolted stringers are used to enhance structural stability, capable of supporting point loads of up to 890kg. The fire-rated cores comply with ASTM E84 Class 1 standards. Optional gasket-sealed edges can be added to create air-tight compartments, suitable for clean room or pressurized applications, demonstrating the panels' versatility across different technical specifications.
Product Qualification
FINECO's basement raised floor panels are designed and manufactured to the peak standards of quality and durability. The foundation of this excellence lies in the utilization of premium materials and precision manufacturing methods. The key elements of these panels are made from high-grade ST14 and SPCC steels. These types of steels are highly regarded for their outstanding strength, corrosion resistance, and formability, ensuring that the panels maintain their structural integrity in demanding situations.
The utilization of lightweight foam concrete significantly boosts performance. It reduces the overall weight and offers excellent thermal insulation, sound absorption, and eco-friendly attributes. In the production process, heavy-duty high-tonnage presses are employed to ensure uniform pressure application and precise shaping, effectively eliminating material defects and
The synergistic effect of advanced materials and industrial-grade equipment leads to the production of products that regularly exceed industry norms for durability, reliability, and operational excellence, meeting the most exacting customer expectations.
Shipping and Package
FAQ
Q: 1. How long does basement raised floor panels installation take?
A: Installation timelines vary according to the area size and complexity. Small spaces can be completed in a short period of days, while large data centers may take several weeks. Collaborative planning with HVAC and electrical teams is critical.
Q: 2. What issues might I encounter with basement raised floor panels?
A: Risks include panels deforming under excessive weight, cable congestion impeding air circulation, and loose tiles creating trip hazards. Regular maintenance and compliance with load limits are effective preventive measures to mitigate these issues.
Q: 3. Can basement raised floor panels be installed over existing flooring?
A: Yes, the installation of basement raised floor panels is versatile, allowing for direct placement over existing concrete, tiles, or carpeted surfaces, provided the subfloor is level and structurally sound. This saves time and reduces costs compared to removing the original floor.
Q: 4. Are basement raised floor panels fire-resistant?
A: To effectively reduce fire risks in basements, raised floor panels are constructed using fire-resistant materials like steel and fire-retardant laminates, with many components achieving a Class A fire rating. Nevertheless, it is essential to adhere to local fire codes and ensure the installation of appropriate fire suppression systems.
Q: 5. What is a basement raised floor panels system?
A: The basement raised floor panels system, with its interlocking panels and support pedestals, creates an elevated platform above the existing floor. This system allows for the installation of cables, utilities, and HVAC systems beneath the floor, providing significant advantages such as easy access for maintenance and flexibility in layout adjustments.
