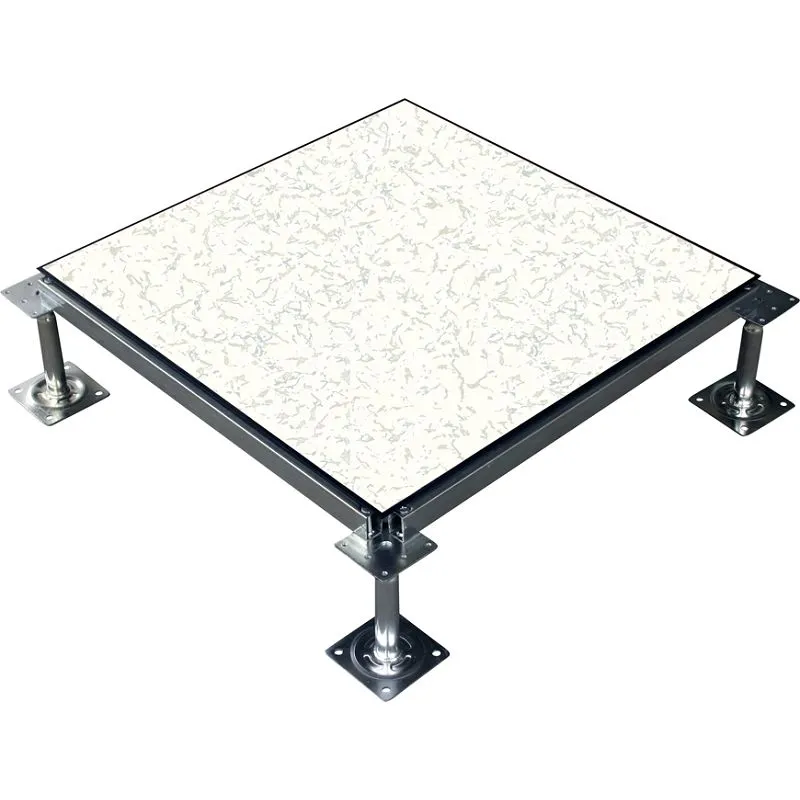

Engineered for modern facilities, FINECO's data center raised access flooring system offers remarkable durability, seamless cable management, and unmatched load-bearing capacity. The modular construction enables rapid installation and flexibility for rearrangement. Featuring anti-static and fire-resistant characteristics, it ensures a safer, more organized space. Perfect for data centers, offices, and industrial locations-elevate efficiency and aesthetics with a durable solution.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application

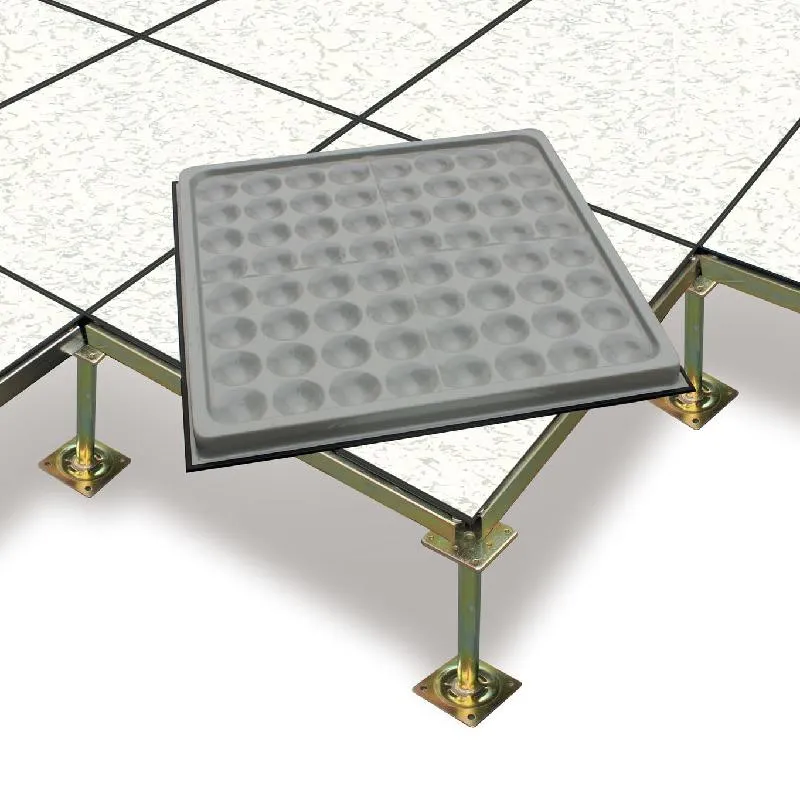

FINECO's data center raised access flooring system is crafted to meet the infrastructure needs of modern facilities. Built using high-strength, anti-corrosion steel and featuring fire-resistant coatings, these systems offer remarkable load-bearing capacity and enduring durability. The modular design enables fast installation, easy reconfiguration, and seamless access to underfloor utilities, boosting operational efficiency. The integrated cable management channels enhance airflow and organize power/data cabling while minimizing mess. Perfect for challenging environments such as data centers, industrial facilities, command control rooms, and laboratories, steel raised floors ensure safety, flexibility, and adherence to international standards, meeting dynamic spatial needs with minimal maintenance.
Product details

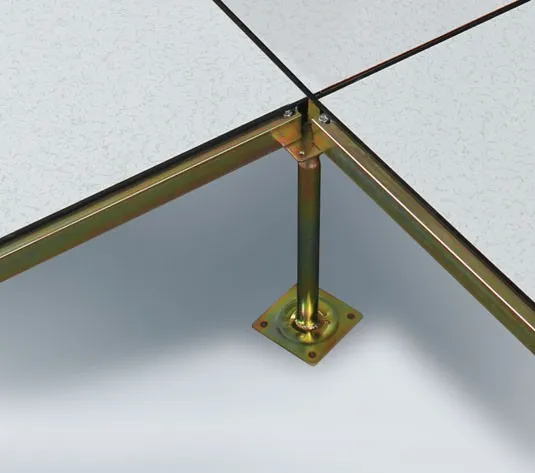

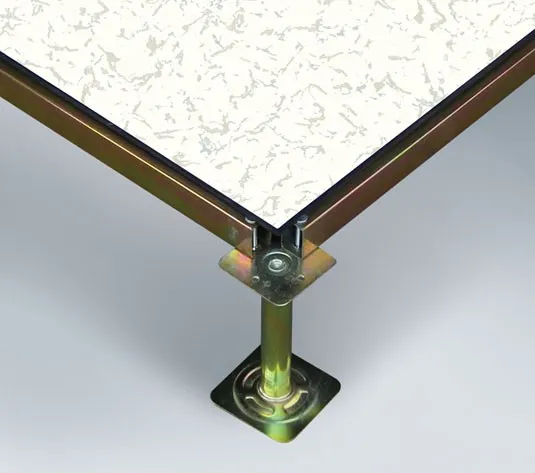

Designed for optimal performance, FINECO's data center raised access flooring system features meticulously engineered details. ESD edge trims guarantee seamless conductivity and static dissipation across the entire floor system. Every system is subjected to rigorous epoxy powder-coated anti-rust treatment, providing protection against corrosion in humid or harsh conditions. Multiple anti-static laminate choices (HPL, PVC, ceramic) allow for customizable looks while keeping 10^4–10^9Ω surface resistance. Reinforced bolted stringers enhance structural stability, capable of supporting point loads up to 890kg. The fire-rated cores adhere to ASTM E84 Class 1 standards. Optional gasket-sealed edges create air-tight compartments for clean room or pressurized uses, highlighting the system's versatility in terms of technical specifications.
Product Qualification
Engineered to the peak standards of quality and durability, FINECO's data center raised access flooring system starts with top-tier materials and precision manufacturing. The main components utilize high-grade ST14 and SPCC steels, which are famous for their exceptional strength, resistance to corrosion, and formability, guaranteeing structural integrity under challenging conditions.
The incorporation of lightweight foam concrete boosts performance by reducing overall weight and providing superior thermal insulation, sound absorption, and green properties. Production relies on robust, high-tonnage presses that apply uniform pressure and careful shaping, getting rid of material issues and guaranteeing dimensional precision.
The use of advanced materials and industrial-grade equipment results in products that continually exceed industry norms in terms of durability, dependability, and operational excellence, meeting the most stringent customer demands.
Shipping and Package
FAQ
Q: 1. Can I install a data center raised access flooring system myself?
A: Although DIY installation is viable for simple designs, it is wise to choose professional installation for complex ones. The structural integrity, cable management, or safety may be compromised by incorrect assembly.
Q: 2. What is the typical load capacity of a data center raised access flooring system?
A: Variances exist in load capacities, but standard systems can support 662 to 2000 pounds per square foot (psf). In high-density settings like data centers, 2000+ psf may be needed. Check the manufacturer's instructions for specific installations.
Q: 3. What materials are data center raised access flooring system made of?
A: Panels are commonly created using steel with a cement or laminate surface layer, or aluminum for weight reduction purposes. There are also woodcore and calcium sulphate core types. Pedestals and supports are typically made of steel or aluminum. Anti-static coatings are prevalent in environments containing electronic equipment to prevent static discharge.
Q: 4.What is the lifespan of a data center raised access flooring system?
A: The life expectancy of a data center raised access flooring system is usually influenced by the quality of the materials and the maintenance performed. It can generally endure for more than a decade.
Q: 5. Where can I find more resources or support?
A: Contact your data center raised access flooring system provider for technical manuals, installation tutorials, or in-person consultations. Organizations such as BICSI (Building Industry Consulting Services International) offer valuable best practices and training resources as well.
