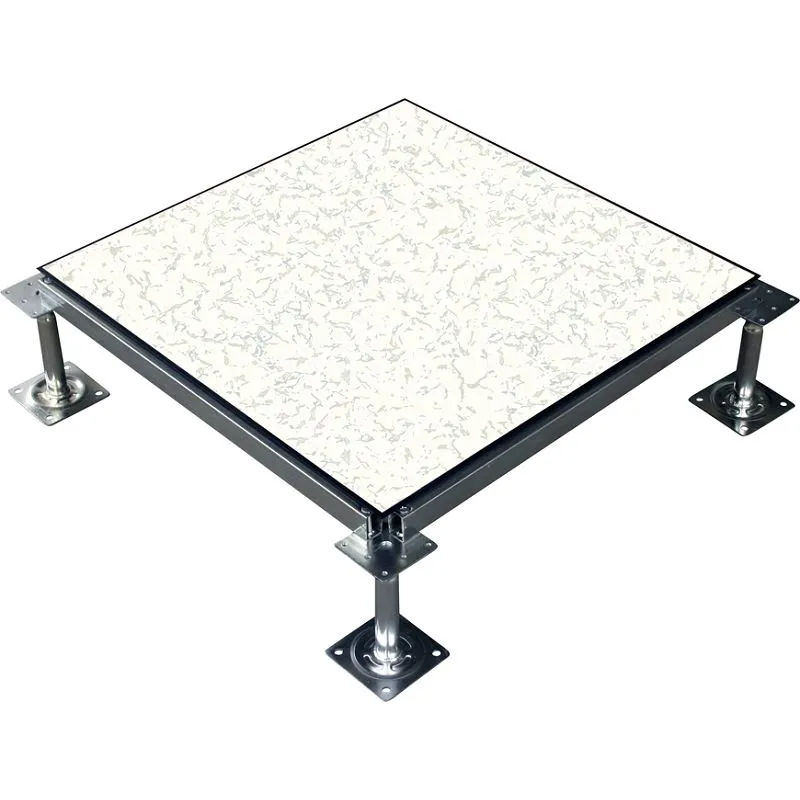

Engineered for contemporary facilities, FINECO's low profile raised access flooring system stands out with its exceptional durability, easy cable management, and unparalleled load-bearing capacity. The modular design facilitates quick installation and offers flexibility for reconfiguration. With its anti-static and fire-resistant properties, it guarantees a safer and more organized environment. Ideal for data centers, offices, and industrial spaces, it boosts efficiency and aesthetics, being a solution designed to endure.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application

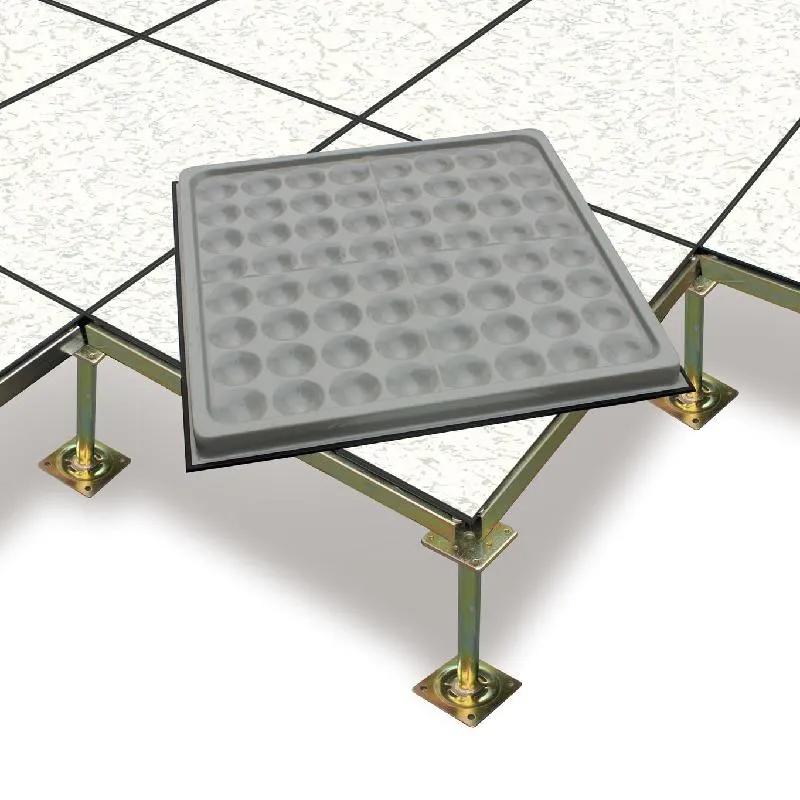

FINECO's low profile raised access flooring system is designed to meet the robust requirements of modern infrastructure. Composed of high-strength, anti-corrosion steel and coated with fire-resistant materials, it provides exceptional load-bearing capacity and durable performance over the long term. The modular design enables quick installation, easy reconfiguration, and seamless access to underfloor utilities, thus enhancing operational efficiency. Integrated cable management channels optimize airflow and organize power/data cabling while reducing clutter. This system is perfect for demanding settings such as data centers, industrial facilities, command control rooms, and laboratories. The steel raised floor ensures safety, adaptability, and compliance with international standards, accommodating dynamic spatial requirements with minimal maintenance.
Product details

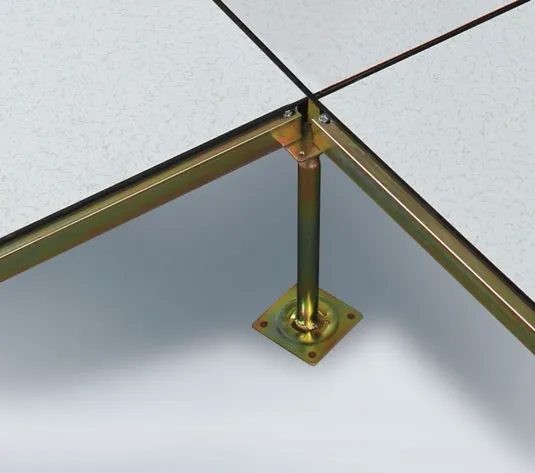

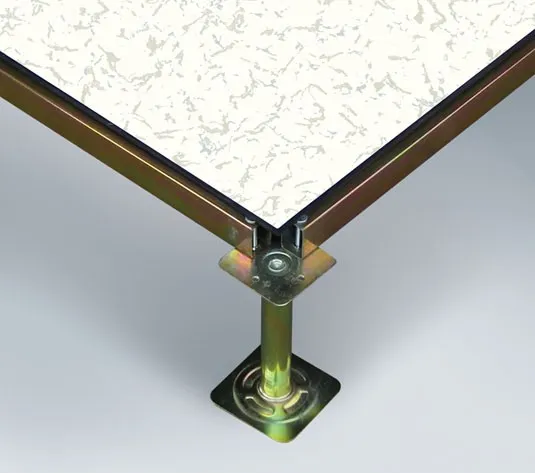

FINECO low profile raised access flooring system stands out with its precisely engineered details that are aimed at achieving optimal performance. ESD edge trims are incorporated to ensure seamless conductivity and effective static dissipation across the entire floor system. Each system is treated with a rigorous epoxy powder-coated anti-rust process, providing a strong guarantee of corrosion resistance in humid or harsh conditions. Multiple anti-static laminate choices, including HPL, PVC, and ceramic, are offered, allowing for customizable aesthetics while keeping the surface resistance within the range of 10^4–10^9Ω. The reinforced bolted stringers play a crucial role in enhancing structural stability, enabling the support of point loads up to 890kg. The cores are fire-rated and meet ASTM E84 Class 1 standards. Additionally, the optional gasket-sealed edges create air-tight compartments, making it suitable for clean room or pressurized applications, thus highlighting its versatility in terms of technical specifications.
Product Qualification
Engineered to the peak standards of quality and durability, FINECO's low profile raised access flooring system is specifically designed for server room environments requiring diverse load-bearing capacities. It begins its excellence with premium materials and precise manufacturing techniques. Key elements are made from high-grade ST14 and SPCC steels, recognized for their outstanding strength, corrosion resistance, and formability. This ensures the structural integrity of the system when faced with demanding conditions, providing a stable and reliable foundation for server
The integration of lightweight foam concrete further enhances performance by reducing the overall weight of the low profile raised access flooring system. At the same time, it provides superior thermal insulation, sound absorption, and eco-friendly properties. This system is specifically designed for server room environments requiring diverse load-bearing capacities. In production, heavy-duty, high-tonnage presses are used. They deliver uniform pressure and precise shaping, eliminating material flaws and guaranteeing dimensional accuracy. The system undergoes rigorous evaluation following CE and CISCA standardized procedures to ensure full compliance with FINECO's quality benchmarks.
By combining advanced materials with industrial-grade equipment, the resulting products exhibit outstanding qualities. They constantly outperform the industry standards for longevity, reliability, and operational excellence, fully satisfying the highest customer expectations.
Shipping and Package
FAQ
Q: 1. Can I install a low profile raised access flooring system myself?
A: Although DIY installation is viable for simple layout situations, it is strongly suggested to opt for professional installation for complex projects. Incorrect assembly can compromise the structural integrity, cable management, and safety, potentially leading to costly repairs or even hazards. Professional installers have the experience and knowledge to ensure a proper and secure installation.
Q: 2. How is a low profile raised access flooring system installed?
A: Typically, the installation involves first leveling the subfloor to create a stable base. Then, support pedestals are positioned accurately. After that, beams or stringers are attached to offer the necessary structural support. Finally, the floor panels are placed in their designated positions. The height can be modified using the adjustable pedestals to suit specific needs. Seams between the panels are sealed to achieve airtightness, and edge trim is applied for safety purposes.
Q: 3. What is the typical load capacity of a low profile raised access flooring system?
A: There is a variation in load capacities across different systems. Normally, standard systems can handle a load in the range of 662 to 2000 pounds per square foot (psf). In cases of high-density areas, for instance, data centers, a load capacity of 2,000+ psf might be demanded. For specific installations, it is essential to consult the manufacturer specifications to determine the suitable load capacity.
Q: 4. Are low profile raised access flooring system fire-resistant?
A: Numerous components of the low profile raised access flooring system comply with fire safety standards, for example, achieving a Class A rating. Materials such as steel or fire-retardant laminates are employed to minimize potential risks. Nevertheless, it is imperative to check local codes and ensure that proper fire suppression systems are in place to guarantee safety.
Q: 5.What is the lifespan of a low profile raised access flooring system?
A: The longevity of a low profile raised access flooring system is typically determined by the quality of the materials used and the level of maintenance it receives. Generally, it has the potential to last for more than 10 years with proper care.
