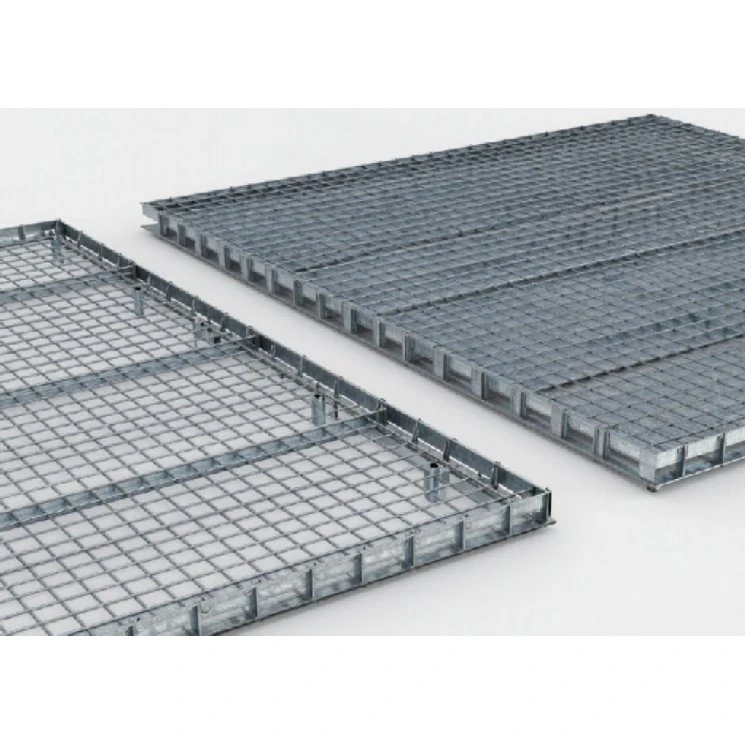

Encapsulated Steel Anti-Static Raised Floor
ESD-Controlled Raised Access Flooring for Data Centers, Server Rooms and Technical Facilities
FINECO Encapsulated Steel Anti-Static Raised Floor is a modular access flooring system engineered for environments requiring strict electrostatic discharge (ESD) control, high load capacity, and underfloor service routing.
The system combines a fully encapsulated steel panel, a high-density core, an anti-static surface, and a heavy-duty adjustable pedestal understructure to create an accessible service void for power, data cabling, and cooling infrastructure.
Key Technical Parameters
|
Parameter |
Specification |
|
Standard Panel Size |
600 × 600 mm (Custom sizes available) |
|
Standard Panel Thickness |
30 mm to 35 mm |
|
Panel Construction |
Fully Welded & Encapsulated Steel Shell |
|
Core Material |
High-Density Cementitious Core |
|
Steel Sheet Thickness |
0.6 mm to 1.0 mm (Top & Bottom) |
|
Surface Finish Options |
Anti-Static HPL (1.2 mm) / Conductive PVC |
|
Surface Electrical Resistance |
1 × 10⁶ to 1 × 10⁹ Ω (Tested per EN 12825 & ESD S7.1) |
|
Concentrated Load |
Up to 3,000 N (Class 2 to Class 4 per CISCA / EN 12825) |
|
Uniformly Distributed Load (UDL) |
12 kN/m² to 20 kN/m² |
|
Finished Floor Height (FFH) |
150 mm to 1,500 mm (Adjustable) |
|
Fire Performance |
Class A (Flame spread and smoke development compliant) |
|
Understructure System |
Adjustable Steel Pedestals + Optional Interlocked Stringers |
System Component Breakdown
|
Component |
Material / Function |
|
Surface Finish |
Anti-Static HPL or Conductive PVC providing specified ESD performance |
|
Top & Bottom Steel |
Deep-formed steel sheets providing structural rigidity and impact resistance |
|
Core Material |
High-density cementitious core for mass and acoustic insulation |
|
Edge Trim |
Protective steel perimeter maintaining strict dimensional stability |
|
Pedestal Understructure |
Galvanized steel adjustable pedestals and heads establishing exact floor height |
Key Product Advantages
Controlled ESD Performance: Surface resistance manufactured to precise project specifications, preventing electrostatic damage to sensitive IT hardware.
Protected Steel Construction: Fully welded and sealed steel shell protects the inner core against moisture, dust, and impact during frequent maintenance.
Service Accessibility: Individual panels lift out easily via suction lifters, providing instant access to underfloor power, data routes, and cooling plenums without dismantling the grid.
Dimensional Stability: Engineered to maintain consistent module alignment and structural integrity under heavy equipment traffic and caster loads.
Applications
Data Centers & Server Rooms: Supports high-density racks, heavy cable bundles, and underfloor air-conditioning plenums.
Telecommunications Facilities: Accommodates continuous monitoring equipment and complex network wiring.
Control Rooms & Command Centers: Provides an ergonomic, vibration-free foundation for 24/7 technical operations.
Cleanrooms & Electronics Manufacturing: Low-emission, easy-to-sanitize configurations for sensitive assembly lines.
Quality Control, Documentation & After-Sales Support
FINECO enforces strict multi-point manufacturing quality checks and comprehensive project support:
Quality Assurance: Panel squareness and dimensional tolerance controlled within ±0.2 mm via laser calibration; rigorous pre-export load and ESD testing.
Project Documentation: ISO 9001 certification, EN 12825/CISCA test reports, ESD certificates, and CAD installation shop drawings provided.
After-Sales Support: Dedicated technical guidance for overseas installation, clear operation manuals, and responsive logistics tracking to ensure smooth on-site execution.
Export Packaging: Moisture-proof pallet packaging with edge protection designed for safe long-distance international transit.
Frequently Asked Questions
Q: Can individual floor panels be removed easily?
A: Yes. The modular design allows individual panels to be lifted using a standard suction lifter, granting instant access to underfloor services without dismantling adjacent floor sections.
Q: Can the raised floor support heavy server racks and UPS units?
A: Yes. By selecting the correct load class and adding understructure stringers, the system safely supports heavy concentrated loads from server racks, battery cabinets, and caster equipment.
Q: What information is required to get an accurate quotation?
A: Please provide your project type, total floor area (or panel quantity), finished floor height, required load rating, ESD resistance specification, surface finish choice, and delivery destination port.
Q: Do you provide installation instructions and technical support?
A: Yes. FINECO supplies comprehensive installation manuals, CAD layout guidance, and full remote engineering support for international projects.
