FINECO aluminum access floor panel is widely used in advance manufacturing, clean room, data center etc. Its basic material is the die-cast aluminum alloy core, which is sand-blasted, coated with epoxy and sealed by HPL, PVC, stainless steel finish on the top, trim-less or vinyl trims on four sides. This high-end raised flooring system is appropriate for a variety of applications because of its excellent loading capacity, stability, static performance while it's easy installation and maintenance.
Product specification
|
Model |
Concentrated load |
Ultimate load (N) |
Uniform Load (N/m2) |
Surface Treatment |
Top Finish |
|
|
KG |
N |
Shot blasting /Epoxy coating |
Bare/HPL/PVC |
|||
|
FCA500 |
500 |
4900 |
9800 |
14700 |
○ |
○ |
|
FCA700 |
700 |
6860 |
13720 |
20580 |
○ |
○ |
|
FCA1000 |
1000 |
9800 |
19600 |
29400 |
○ |
○ |
|
FCA1200 |
1200 |
11760 |
23520 |
35280 |
○ |
○ |
|
FCA1500 |
1500 |
14700 |
29400 |
44100 |
○ |
○ |
|
FCA2000 |
2000 |
19600 |
39200 |
58800 |
○ |
○ |
|
FCA2500 |
2500 |
24500 |
49000 |
73500 |
○ |
○ |
|
FCA3000 |
3000 |
29400 |
58800 |
88200 |
○ |
○ |
Product feature and application
Feature:
- Full aluminum die-casting structure, light weight, no ferrous materials to disrupt magnetic fields
- Perforated panels and grates provide a variety of open area percentages
- High dimensional precision, high loading, designed for advanced manufacturing facilities, data centers and other industrial applications
- More stable static performance, compared with steel or galvanized steel material
- High flexibility to adapt to an updating application, reusable in different locations
- Non-combustible material, Class A fire proof rating
- Highly recyclable and eco-friendly
Application:
- Semi-conductor factory, electronic workshop, clean room, data center advanced manufacturing etc.
Product details

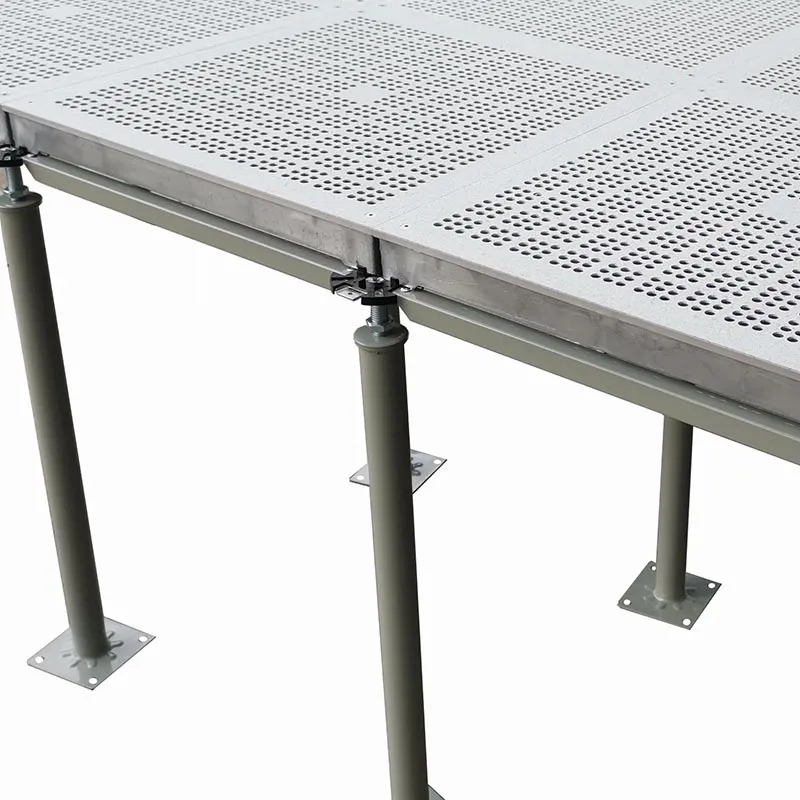

FINECO aluminum access floor panel is made of die-casting aluminum alloy with latest technics. It's typically shot blasting treated with epoxy coating or laminated with a variety of finishes on the top, trim less or with the edges sealed by PVC or ABS trim to protect from impact and ensure dimensional stability. The surface can accommodate various finishes to meet aesthetic and functional requirements, such as antistatic HPL, PVC or stainless steel. It's either produced as blind panel or perforated type. The panels are installed on an adjustable pedestal and stringer system, which creates an accessible void beneath the floor for services like electrical, data, and HVAC systems. Because of the property of light weight, it's easy and flexible for installation and maintenance.
Product Qualification
Quality is always the first concern when it comes to raw materials, production, internal testing, and packaging. To ensure the aluminum access floor panels meet or exceed industry standards for performance, durability, and safety, FINECO uses a rigorous quality control process that involves thorough testing at many manufacturing stages. These assessments include specific tests for critical attributes including dimensional accuracy, load-bearing capacity, and flatness.
The products are certified according to CE, CISCA, MOB recommended test procedure to ensure high quality requirement from global market.
Delivery, shipping and service
Delivery: The lead time is usually 15 working days for order within 5000 sqm. More quantity might be arranged in accordance with specific needs. From raw materials to finished goods, quality is never compromised despite the short lead time. During manufacture, a comprehensive quality control process will be rigorously adhered to.
Shipping: Whether shipping by air or sea, every item will be carefully wrapped in a pallet or box to ensure its condition when it is delivered to customers. Additionally, several shipping conditions, such as EXW, FOB, CFR, CIF, etc., are available for both FCL and LCL.
Service: To ensure that customers have a positive experience, products, design, and technical support are constantly available. Regardless of whether a question is asked before or after a transaction, it will be answered within 24 hours.
FAQ
Q: Do you offer samples of steel access floor panel?
A: One set of access floor including 1 panel and 4 pedestals is free of charge but more products and the shipping cost would be clients duty.
Q: What is the MOQ?
A: For standard items, the minimum order quantity (MOQ) for steel access floor panels is 50 square meters; however, a complete container of 540 square meters would be far more cost-effective per unit.
Q: What is a raised floor system?
A: An elevated floor above the original building slab is created using a raised floor system, which is a modular infrastructure made up of linked planks and movable support pedestals. Unrestricted maintenance access and flexible spatial reconfiguration are made possible by this design, which permits the covert installation of cables, service lines, and climate control systems within the underfloor void.
