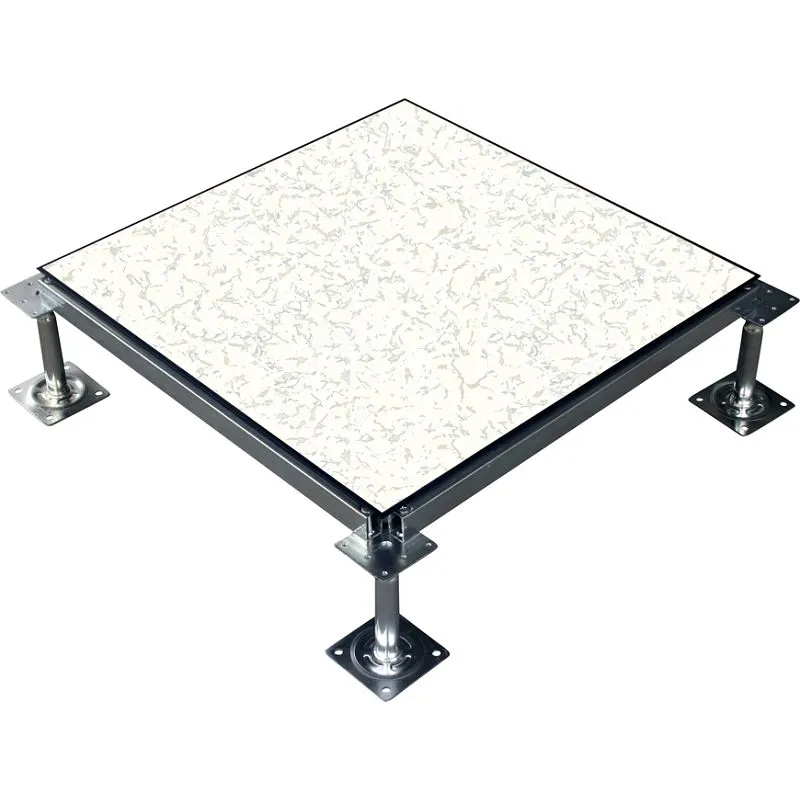

Built for modern facilities, FINECO's raised access floor tile for server room stands out with exceptional durability, effortless cable handling, and unparalleled load-bearing potential. The modular approach enables rapid installation and flexibility in rearranging. With anti-static and fire-resistant qualities, it ensures a safer and more orderly environment. Ideal for data centers, offices, and industrial locations-enhance efficiency and aesthetics with a solution designed to last.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's raised access floor tile for server room offers sturdy and trustworthy solutions for modern infrastructure requirements. Fabricated from high-strength, anti-corrosion steel and featuring fire-resistant coatings, these tiles exhibit exceptional load-bearing capacity and long-lasting durability. The modular design allows for quick installation, effortless rearrangement, and seamless access to underfloor utilities, improving operational efficiency. Integrated cable management channels optimize airflow and neatly organize power/data cabling, minimizing mess. Suitable for demanding settings such as data centers, industrial facilities, command control rooms, and laboratories, steel raised floors ensure safety, adaptability, and compliance with international standards, supporting changing spatial demands with minimal maintenance.
Product details
FINECO's raised access floor tile for server room is crafted with precision-engineered details for optimal performance. ESD edge trims ensure seamless electrical conduction and static dissipation across the entire floor system. Each tile undergoes a rigorous epoxy powder-coated anti-rust treatment, guaranteeing resistance to corrosion in humid or harsh environments. Multiple anti-static laminate options (HPL, PVC, ceramic) provide customizable aesthetics while maintaining a surface resistance of 10^4–10^9Ω. Reinforced bolted stringers enhance structural stability, capable of supporting point loads up to 890kg. Fire-rated cores meet ASTM E84 Class 1 standards. Optional gasket-sealed edges create air-tight compartments, suitable for clean room or pressurized applications, highlighting versatility in technical specifications.
Product Qualification
The FINECO raised access floor tiles for server room are designed to meet the highest quality and durability criteria, starting with premium materials and precise manufacturing. Key components are crafted from high-grade ST14 and SPCC steels, known for their remarkable strength, corrosion resistance, and formability, guaranteeing structural integrity in challenging settings.
The use of lightweight foam concrete in raised access floor tiles for server room further enhances performance, reducing the overall weight and providing excellent thermal insulation, sound absorption, and eco-friendly attributes. The manufacturing process employs heavy-duty, high-tonnage presses to ensure uniform pressure and precise shaping, eliminating material defects and guaranteeing dimensional precision.
By uniting advanced materials with industrial-grade equipment, we manufacture products that consistently outperform industry benchmarks for longevity, reliability, and operational excellence, satisfying the most stringent customer expectations.
Shipping and Package
FAQ
Q: 1. What is a raised access floor tile for server room system?
A: In a server room, a raised access floor tile system is a structural arrangement of interlocking panels and support pedestals, creating an elevated surface above the original floor. It enables the installation of cables, utilities, and HVAC systems underneath, ensuring easy maintenance access and flexibility in layout modifications.
Q: 2. How do I maintain a raised access floor tile for server room?
A: It is essential to conduct regular inspections for loose panels and damaged supports. Vacuuming or sweeping the underfloor space to remove debris is important. Avoid heavy point loads exceeding the rated capacity. Replace damaged panels in a timely manner and ensure cables are well-organized to prevent obstructions.
Q: 3. What is the typical load capacity of a raised access floor tile for server room?
A: The load capacity of systems varies, with standard ones able to support 662 to 2000 pounds per square foot (psf). In high-density regions such as data centers, 2,000+ psf could be necessary. Check the manufacturer's details for specific installation requirements.
Q: 4. Can raised access floor tile for server room be adjusted after installation?
A: Yes. Adjustable pedestals permit height alterations to cater to new equipment or cable rerouting. Adding or removing panels is an option, making the raised access floor tile for server room highly responsive to evolving needs.
Q: 5. How do raised access floor tile for server room improve airflow in data centers?
A: Under the floor, a plenum is created, allowing cool air to be dispersed through perforated tiles or vents to the server racks. The hot air is released above, creating a closed-loop cooling system that enhances energy efficiency and stops hotspots from occurring.
