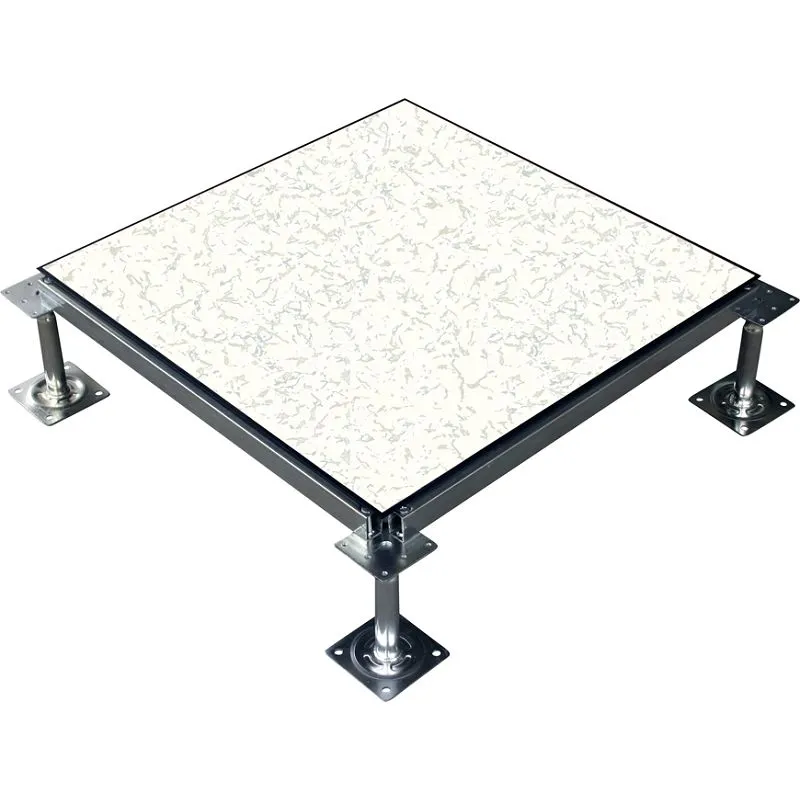

FINECO's low profile raised access floor tile is specially designed for modern facilities. It stands out with exceptional durability, effortless cable management capabilities, and an unmatched load-bearing capacity. Its modular design enables quick installation and flexibility in reconfiguration. Moreover, it has anti-static and fire-resistant properties, ensuring a safer and more organized environment. It is perfect for data centers, offices, and industrial spaces, providing a solution that boosts efficiency and aesthetics and is built to last.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's low profile raised access floor tile is designed to provide robust and reliable solutions for modern infrastructure needs. Made from high-strength, anti-corrosion steel and coated with fire-resistant materials, these tiles offer exceptional load-bearing capacity and long-term durability. The modular design allows for quick installation, effortless reconfiguration, and seamless access to underfloor utilities, enhancing operational efficiency. The integrated cable management channels optimize airflow and organize power/data cabling, minimizing clutter. Ideal for demanding environments like data centers, industrial facilities, command control rooms, and laboratories, these steel raised floors ensure safety, adaptability, and compliance with international standards, supporting dynamic spatial requirements with minimal maintenance.
Product details
To meet the demands for optimal performance, FINECO's low profile raised access floor tile features precision-engineered details. The ESD edge trims ensure that there is seamless conductivity and static dissipation throughout the floor system. Each tile undergoes a stringent epoxy powder-coated anti-rust treatment, providing a guarantee of corrosion resistance in environments that are humid or harsh. Multiple anti-static laminate options such as HPL, PVC, and ceramic are available, offering customizable aesthetics and maintaining a surface resistance of 10^4–10^9Ω. The structural stability is enhanced by reinforced bolted stringers, which can support point loads up to 890kg. The cores are fire-rated and comply with ASTM E84 Class 1 standards. Optional gasket-sealed edges can be used to create air-tight compartments, suitable for clean room or pressurized applications, highlighting the versatility of these tiles in terms of technical specifications.
Product Qualification
FINECO's low profile raised access floor tiles are meticulously engineered to meet the highest standards of quality and durability. The manufacturing process begins with the selection of premium materials and precision techniques. The key components of these tiles are crafted from high-grade ST14 and SPCC steels, which are well-known for their remarkable strength, resistance to corrosion, and excellent formability. This ensures that the tiles maintain their structural integrity even under the most demanding conditions.
The inclusion of lightweight foam concrete further enhances performance. It lessens the overall weight and provides superior thermal insulation, sound absorption, and eco-friendly properties. In the production process, heavy-duty, high-tonnage presses are employed to ensure steady pressure and precise shaping, eliminating material flaws and guaranteeing dimensional accuracy.
Through the integration of advanced materials and industrial-grade equipment, products are produced that constantly surpass industry benchmarks for longevity, reliability, and operational excellence, satisfying the most stringent customer expectations.
Shipping and Package
FAQ
Q: 1. How is a low profile raised access floor tile installed?
A: Typically, the installation process includes leveling the subfloor, positioning the support pedestals accurately, attaching the beams or stringers, and laying the floor panels. The height can be adjusted using the pedestals to meet specific requirements. Seams between the panels are sealed for airtightness and finished with edge trim to ensure safety.
Q: 2. What materials are low profile raised access floor tile made of?
A: Normally, panels are made of steel with a cement or laminate surface, or aluminum to achieve a lighter weight. There are also woodcore and calcium sulphate core panels. Pedestals and supports are usually of steel or aluminum. Anti-static finishes are common in environments with electronic equipment to avoid static discharge.
Q: 3. Can low profile raised access floor tile be installed over existing flooring?
A: Yes, low profile raised access floor tiles can be directly laid over existing concrete, tiles, or carpeted surfaces, as long as the subfloor is level and structurally sound. This saves time and cost compared to the process of removing the original floor.
Q: 4. What issues might I encounter with low profile raised access floor tile?
A: Potential concerns include panel deformation from excessive weight, cable congestion affecting airflow, and loose tiles causing trip hazards. Regular maintenance and adherence to load limits can mitigate these risks.
Q: 5. Are low profile raised access floor tile fire-resistant?
A: Multiple low profile raised access floor tiles meet fire safety standards, for example, the Class A rating. Materials including steel or fire-retardant laminates are used to minimize risks. However, local codes should be checked and proper fire suppression systems must be in place.
