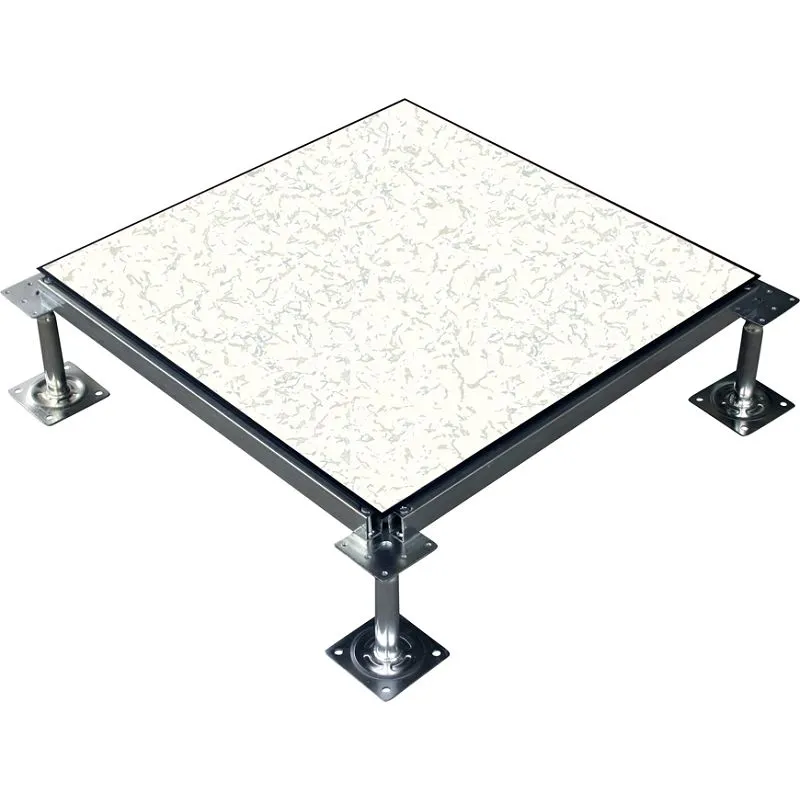

FINECO's heavy duty raised access floor tile is designed for modern facilities, boasting exceptional durability, easy cable management, and high load-bearing capacity. Its modular design facilitates quick installation and flexibility for reconfiguration. With anti-static and fire-resistant characteristics, it ensures a safer and more organized environment. Ideal for data centers, offices, and industrial spaces-elevate efficiency and aesthetics with a durable solution.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's heavy duty raised access floor tile provides strong and dependable solutions for contemporary infrastructure requirements. Made from high-strength, anti-corrosion steel featuring fire-resistant coatings, these tiles offer remarkable load-bearing capacity and enduring durability. The modular design enables rapid installation, easy reconfiguration, and smooth access to underfloor utilities, boosting operational efficiency. Integrated cable management channels enhance airflow and organize power/data cabling while reducing clutter. Perfect for challenging environments like data centers, industrial facilities, command control rooms, and laboratories, steel raised floors guarantee safety, flexibility, and adherence to international standards, accommodating dynamic spatial needs with little maintenance.
Product details
FINECO's heavy duty raised access floor tile stands out with its precision-engineered details for optimal performance. ESD edge trims ensure seamless conductivity and static dissipation across the full floor system. Every tile is treated with a rigorous epoxy powder-coated anti-rust treatment, guaranteeing corrosion resistance in moist or severe environments. A selection of anti-static laminate options (HPL, PVC, ceramic) offers customizable aesthetics while maintaining 10^4–10^9Ω surface resistance. Reinforced bolted stringers enhance structural stability, supporting point loads up to 890kg. Fire-rated cores comply with ASTM E84 Class 1 standards. Optional gasket-sealed edges form air-tight compartments for clean room or pressurized applications, showcasing its versatility across technical specifications.
Product Qualification
FINECO's heavy duty raised access floor tiles are engineered to the highest possible standards of quality and durability, starting with premium materials and precision manufacturing techniques. Key components are made of high-grade ST14 and SPCC steels, famous for their exceptional strength, resistance to corrosion, and formability, ensuring structural integrity under the most demanding
Integrating lightweight foam concrete further boosts performance, cutting the overall weight and offering superior thermal insulation, sound absorption, and environmentally friendly attributes. The production process employs heavy-duty, high-tonnage presses, ensuring uniform pressure and careful shaping, eradicating material flaws and guaranteeing dimensional accuracy.
When advanced materials are integrated with industrial-grade equipment, the products generated consistently exceed industry benchmarks for longevity, reliability, and operational excellence, meeting the highest level of customer expectations.
Shipping and Package
FAQ
Q: 1. What is the typical load capacity of a heavy duty raised access floor tile?
A: The load capacities exhibit variation, with standard systems having the capability to support a range of 662 to 2000 pounds per square foot (psf). In high-density regions such as data centers, a load capacity of 2000+ psf might be necessary. For precise information regarding specific installations, refer to the manufacturer specifications.
Q: 2. How do I maintain a heavy duty raised access floor tile?
A: Regular inspections are essential to identify any loose panels or damaged supports. The underfloor space should be vacuumed or swept to remove debris. One must avoid heavy point loads that exceed the rated capacity. Damaged panels should be replaced promptly, and cable organization is important to prevent obstructions.
Q: 3. Can heavy duty raised access floor tile be adjusted after installation?
A: Yes, it is true. The adjustable pedestals permit height changes to suit new equipment or the rerouting of cables. Adding or removing panels can be done, making heavy duty raised access floor tile highly adaptable to the dynamic needs of various situations.
Q: 4. Are heavy duty raised access floor tile fire-resistant?
A: Many heavy duty raised access floor tile components meet fire safety standards, for example, the Class A rating. Materials like steel and fire-retardant laminates are used to minimize risks. Nevertheless, check local codes and ensure that suitable fire suppression systems are in place.
Q: 5. What issues might I encounter with heavy duty raised access floor tile?
A: Among the potential issues that could occur are panel deformation resulting from excessive weight, cable congestion that hampers airflow, and loose tiles that present trip hazards. Regular maintenance and strict adherence to load limits are essential in mitigating these risks.
