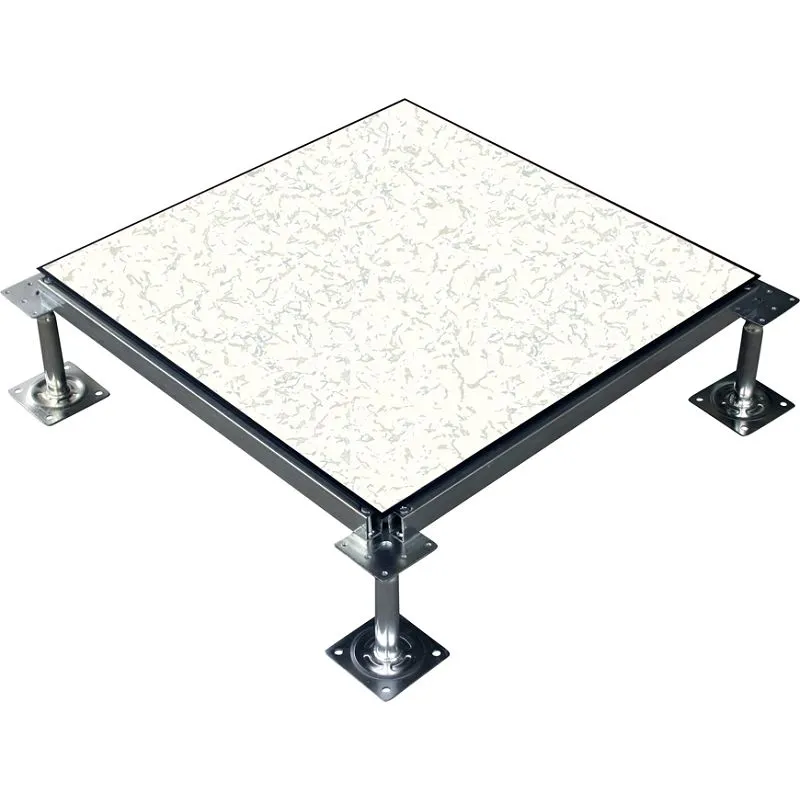

Crafted for contemporary facilities, FINECO's concrete steel raised access floor provides remarkable durability, seamless cable management, and superior load-bearing capacity. Its modular construction enables rapid installation and flexibility for reconfiguration. Featuring anti-static and fire-resistant characteristics, it ensures a safer, more organized environment. Ideal for data centers, offices, and industrial spaces-enhance efficiency and aesthetics with a solution designed for longevity.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
The FINECO concrete steel raised access floor supplies robust and dependable solutions for contemporary infrastructure requirements. Fabricated from high-strength, anti-corrosion steel with fire-resistant coatings, these panels provide exceptional load-bearing capacity and enduring durability. The modular architecture facilitates swift installation, effortless reconfiguration, and seamless access to underfloor utilities, boosting operational efficiency. Integrated cable management channels enhance airflow and organize power/data cabling while reducing clutter. Perfect for challenging environments like data centers, industrial facilities, command control rooms, and laboratories, steel raised floors guarantee safety, adaptability, and adherence to international standards, accommodating dynamic spatial needs with minimal maintenance.
Product details
The FINECO concrete steel raised access floor boasts precision-engineered details for peak performance. ESD edge trims ensure flawless conductivity and static dissipation throughout the entire floor system. Each panel is subjected to rigorous epoxy powder-coated anti-rust treatment, ensuring corrosion resistance in moist or severe environments. A variety of anti-static laminate options (HPL, PVC, ceramic) offer customizable aesthetics while preserving 10^4–10^9Ω surface resistance. Reinforced bolted stringers boost structural stability, supporting point loads up to 890kg. Fire-rated cores meet ASTM E84 Class 1 standards. Optional gasket-sealed edges form air-tight compartments for clean room or pressurized applications, showcasing versatility across technical specifications.
Product Qualification
The FINECO concrete steel raised access floor is crafted to meet the highest quality and durability standards, beginning with premium materials and precise manufacturing. Key components are made from high-grade ST14 and SPCC steels, known for their remarkable strength, corrosion resistance, and formability, guaranteeing structural integrity in demanding conditions.
The inclusion of lightweight foam concrete boosts performance by cutting overall weight and offering excellent thermal insulation, sound absorption, and eco-friendly attributes. Manufacturing employs heavy-duty, high-tonnage presses to ensure uniform pressure and precise shaping, eliminating material defects and ensuring dimensional accuracy.
The blend of advanced materials and industrial-grade equipment produces products that regularly surpass industry standards for durability, dependability, and operational superiority, fulfilling the most stringent customer expectations.
Shipping and Package
FAQ
Q: 1. What is a concrete steel raised access floor system?
A: A concrete steel raised access floor system is a structural assembly of interlocking panels and support pedestals that creates an elevated platform above the existing floor. It facilitates the installation of cables, utilities, and HVAC systems beneath the floor, offering easy access for maintenance and flexibility in layout adjustments.
Q: 2. What materials are concrete steel raised access floor made of?
A: Panels are frequently constructed from steel featuring a cement or laminate surface, or aluminum for reduced weight. Additionally, woodcore and calcium sulphate core options are available. Pedestals and supports are commonly made of steel or aluminum. Anti-static finishes are prevalent in settings with electronic equipment to prevent static discharge.
Q: 3. Can concrete steel raised access floor be adjusted after installation?
A: Yes. The adjustable pedestals permit height adjustments to cater to new equipment or the rerouting of cables. It is possible to add or remove panels, rendering concrete steel raised access floors highly adaptable to changing needs.
Q: 4. How do concrete steel raised access floor improve airflow in data centers?
A: By forming a plenum beneath the floor, cool air is circulated through perforated tiles or vents to server racks. Hot air is discharged above, establishing a closed-loop cooling system that boosts energy efficiency and avoids hotspots.
Q: 5.Can concrete steel raised access floor be disassembled and replaced by oneself?
A: Although the concrete steel raised access floor is designed as a removable structure and could theoretically be disassembled and replaced by oneself, it is advisable to have professional personnel carry out the operation to guarantee safety and effectiveness.
