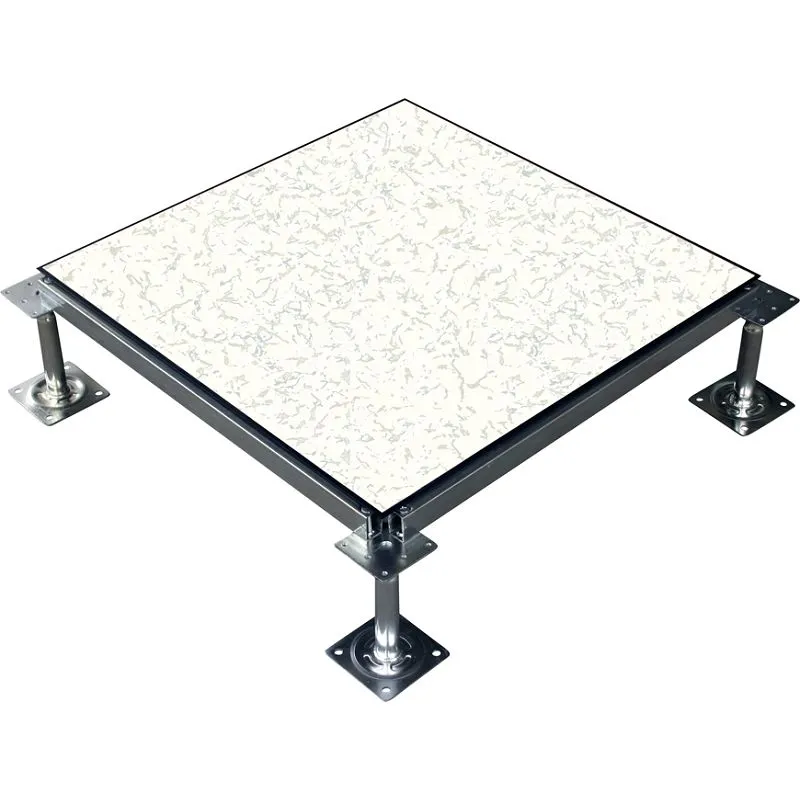

Tailored for contemporary environments, FINECO's concrete raised access floor for office provides remarkable resilience, effective cable organization, and dependable load support. The versatile modular construction facilitates rapid installation and seamless adjustment for future modifications. Featuring anti-static and fire-resistant characteristics, this advanced flooring system enhances safety and order. Ideal for data centers, office layouts, and industrial areas, it merges lasting strength with aesthetic appeal to improve operational effectiveness and the visual appeal of the space.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's concrete raised access floor for office delivers strong and dependable solutions to meet the demands of modern infrastructure. Fabricated from high-strength, anti-corrosion materials and treated with fire-resistant coatings, these floor systems provide excellent load-bearing capability and enduring durability. The adaptable modular design enables rapid installation, easy reconfiguration, and smooth access to underfloor utilities, boosting operational efficiency. Integrated cable management channels enhance airflow and organize power/data cabling, reducing clutter. Suitable for challenging environments like data centers, industrial sites, command and control centers, and laboratories, these raised floor systems ensure safety, flexibility, and adherence to international standards, addressing dynamic spatial requirements with minimal upkeep.
Product details
FINECO's concrete raised access floor for office boasts precision-engineered elements for peak performance. ESD perimeter trims ensure flawless electrical conductivity and efficient static discharge throughout the floor system. Each unit undergoes stringent epoxy powder-coated anti-corrosion treatments, guaranteeing durability in moist or severe environments. A wide array of anti-static laminate choices (HPL, PVC, ceramic) offers customizable aesthetics while keeping a surface resistance ranging from 10^4 to 10^9Ω. Reinforced bolted support structures boost structural strength, able to bear point loads of up to 890kg. Fire-rated cores meet ASTM E84 Class 1 standards. Optional gasket-sealed edges form airtight enclosures, ideal for clean room or pressurized uses, highlighting the floor's adaptability to diverse technical requirements.
Product Qualification
FINECO's concrete raised access floor for office is crafted to adhere to the highest quality and durability standards, beginning with premium materials and meticulous workmanship. Core components are made from advanced, high-grade materials known for their outstanding durability, resistance to environmental factors, and flexibility, ensuring robust structural integrity even in challenging
The incorporation of lightweight foam concrete significantly boosts the performance of the concrete raised access floor for office by lowering overall weight and offering enhanced thermal insulation, sound absorption, and eco-friendly features. Manufacturing utilizes powerful, high-capacity presses that apply consistent pressure and precise molding, eliminating material defects and ensuring dimensional accuracy.
The integration of cutting-edge materials and industrial-grade machinery gives rise to concrete raised access floor for office systems that consistently surpass industry standards in terms of durability, reliability, and operational efficiency, fulfilling the highest client expectations.
Shipping and Package
FAQ
Q: 1. Where are concrete raised access floor for office primarily used?
A: The concrete raised access floor for office is extensively employed in data centers, computer rooms, laboratories, hospital operating rooms, and office spaces, facilitating effective cable management and environmental control.
Q: 2. Where can I find more resources or support?
A: Reach out to your concrete raised access floor for office supplier for technical manuals, installation tutorials, or on-site guidance. Industry organizations such as BICSI (Building Industry Consulting Services International) also provide optimal practices and educational resources.
Q: 3. Can I install a concrete raised access floor for office myself?
A: Although a DIY installation can be feasible for simple designs, it is advisable to opt for professional installation in intricate projects. Improper construction might affect the structural stability, cable organization, or safety.
Q: 4. Can concrete raised access floor for office be disassembled and replaced by oneself?
A: While concrete raised access floor for office systems are designed as a removable structure and could potentially be taken apart and replaced by the user, it is recommended to hire professional personnel to perform the operation to ensure safety and efficiency.
Q: 5. Can concrete raised access floor for office be installed over existing flooring?
A: Indeed, the concrete raised access floor for office can be directly installed over pre-existing concrete, tiles, or carpeted surfaces, as long as the subfloor is level and structurally robust. This approach saves time and cost in comparison to eliminating the original floor.
