Buildings frequently employ FINECO woodcore raised office flooring. Its main component is a high-density chipboard core that is sealed with a PVC or HPL finish on top, vinyl trimmings on four sides, and galvanized steel sheet on the bottom. Alternatively, galvanized steel might completely enclose it. Because of its superior walking qualities, acoustic qualities, wear resistance, and ease of installation and upkeep, this lightweight flooring system is suitable for a wide range of applications.
Product specification
|
Model |
Concentrated load |
Impact load (N) |
Ultimate load (N) |
Uniform Load (N/m2) |
Rolling load (N) |
||
|
LB |
N |
10 times |
10000 times |
||||
|
FS662 |
662 |
2950 |
445 |
8850 |
1250 |
2946 |
2356 |
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
Product feature and application
Feature:
- High dimensional precision, strong loading ability, designed for computer rooms, data centers, offices
- High density chipboard core yet light weight to install compared with other materials
- High flexibility to adapt to an updating application, reusable in different locations
- Protected from antistatic top finish tile, antistatic PVC trim on four sides and galvanized steel bottom sheet or fully steel encapsulated
- Being stable performance in humidity and temperature
- Highly recyclable and eco-friendly
Application:
- Office, commercial complex, data center, server room, advanced manufacturing etc.
Product details

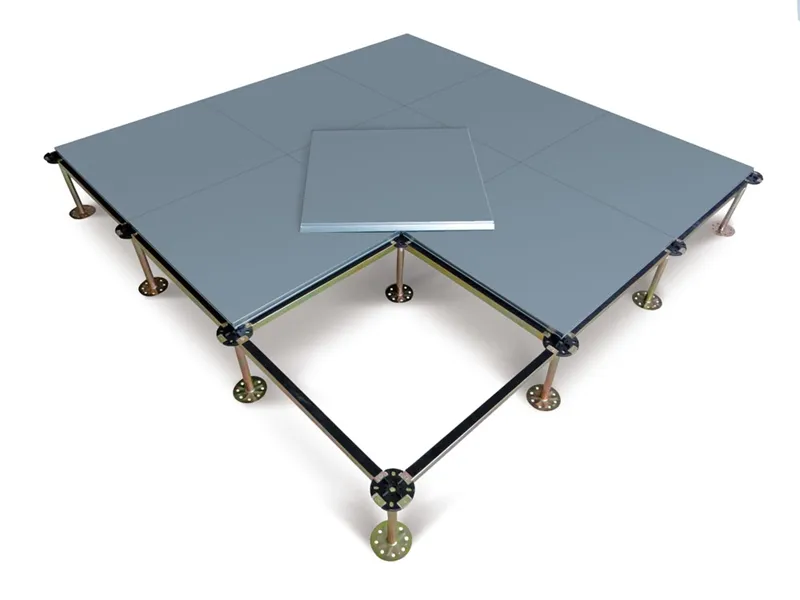

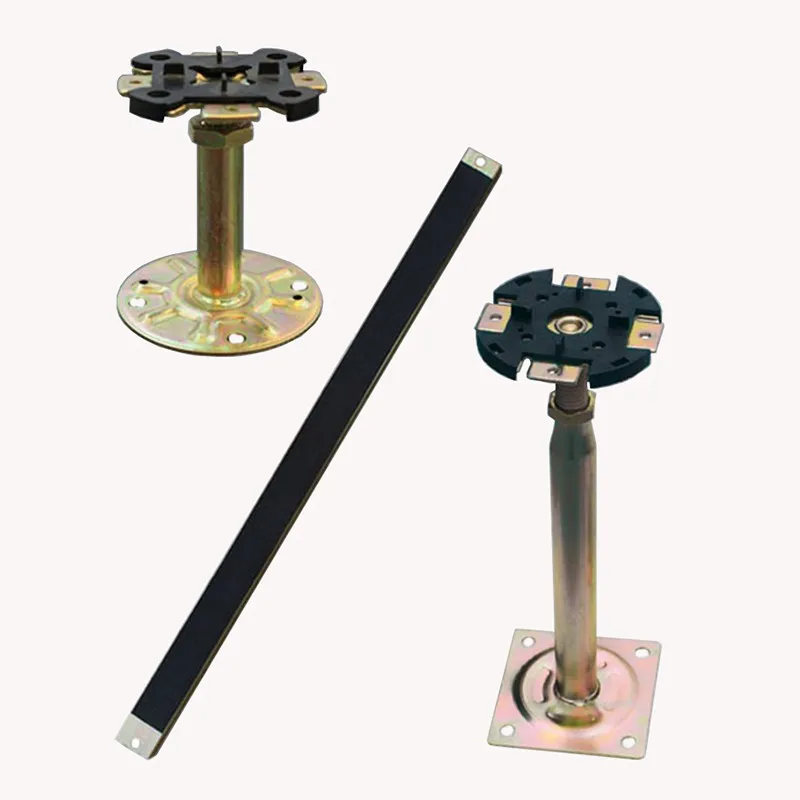

A high-density wood core board is used to make FINECO woodcore raised office flooring. Usually covered in sheets of galvanized steel or laminated with various finishes on top and galvanized steel/aluminum foil on the bottom, the edges are sealed with PVC or ABS trim to prevent moisture damage and provide dimensional stability. A variety of finishes, including antistatic HPL, PVC, carpet, LVT, or wood flooring, can be applied to the surface to satisfy both practical and aesthetic needs. An accessible space beneath the floor is created for utilities including electrical, data, and HVAC systems thanks to the panels' installation atop an adjustable pedestal and stringer system. It is lightweight, which makes installation and maintenance simple and adaptable.
Product Qualification
When it comes to raw materials, production, internal testing, and packaging, quality is always the first priority. FINECO has a strict quality control procedure that includes extensive testing at several manufacturing stages to guarantee that their woodcore raised office flooring meets or beyond industry requirements for performance, durability, and safety. These evaluations involve particular testing for important characteristics including flatness, load-bearing capability, and dimensional correctness.
The products are certified according to CE, CISCA, MOB recommended test procedure to ensure high quality requirement from global market.
Delivery, shipping and service
Delivery: The lead time is usually 15 working days for order within 5000 sqm. More quantity might be arranged in accordance with specific needs. From raw materials to finished goods, quality is never compromised despite the short lead time. During manufacture, a comprehensive quality control process will be rigorously adhered to.
Shipping: Whether shipping by air or sea, every item will be carefully wrapped in a pallet or box to ensure its condition when it is delivered to customers. Additionally, several shipping conditions, such as EXW, FOB, CFR, CIF, etc., are available for both FCL and LCL.
Service: To ensure that customers have a positive experience, products, design, and technical support are constantly available. Regardless of whether a question is asked before or after a transaction, it will be answered within 24 hours.
FAQ
Q: How is the woodcore access floor panel installed?
A: Making sure the substrate is exactly level is the first step in the procedure. Support pedestals are attached to load-bearing beams at predetermined locations. Screw mechanisms are used to adjust the height of the panels, which are then sealed at the seams. Gasket installation and edge protection are the finishing touches.
Q: What is the typical load woodcore access floor panel?
A: Raised floors can support a wide range of weights, usually between 662 and 1,500 pounds per square foot. Higher capacity could be necessary for vital infrastructure, such server rooms. Always adhere to the manufacturer's instructions.
Q: Can woodcore access floor panel be installed over existing flooring?
A: If the surface is level and structurally sound, raised flooring can be installed over existing concrete, tile, or carpet instead of replacing complete floor systems. This will speed up installation and save money.
