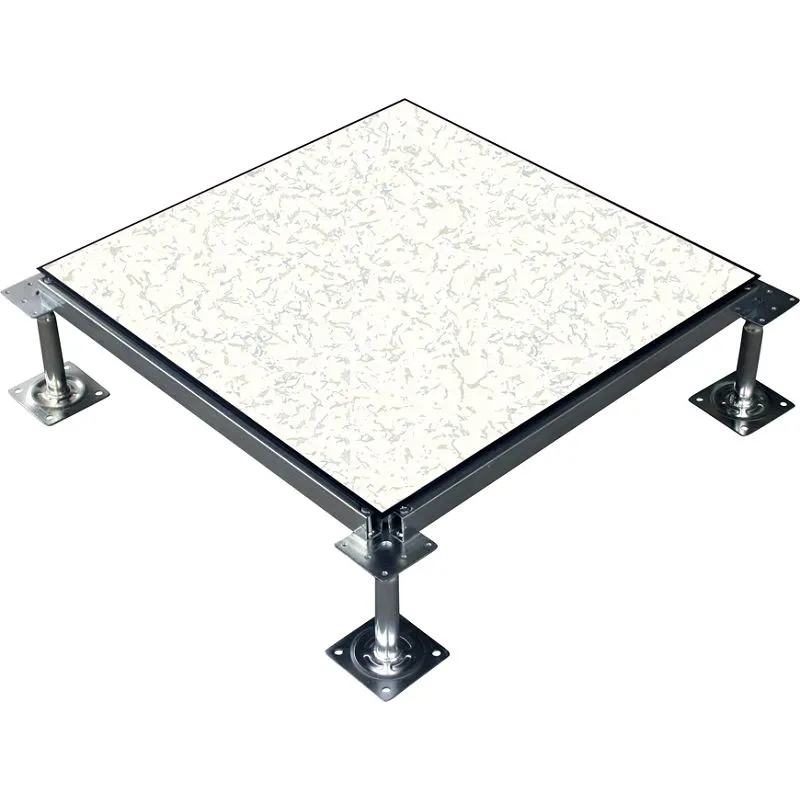

Designed with modern facilities in mind, FINECO's cementitious raised floor data center offers exceptional durability, makes cable management a breeze, and boasts a high load-bearing capacity. Its modular design ensures quick and easy installation, as well as flexibility for future reconfigurations. The inclusion of anti-static and fire-resistant properties makes it an ideal choice for creating a safer and more organized environment. For data centers, offices, and industrial spaces, this solution enhances efficiency and aesthetics, providing a lasting and reliable foundation.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's cementitious raised floor data center is a well-rounded solution for the requirements of modern infrastructure. Featuring high-strength, anti-corrosion materials and fire-resistant coatings, it provides remarkable load-bearing capacity and durable longevity. The modular design enables expedient installation, easy reconfiguration, and seamless access to underfloor utilities, boosting operational efficiency. The integrated cable management channels enhance airflow and organize power/data cabling, reducing clutter. Perfect for demanding environments such as data centers, industrial facilities, command control rooms, and laboratories, it ensures safety, flexibility, and compliance with international standards, supporting dynamic spatial needs with little maintenance.
Product details
FINECO's cementitious raised floor data center features precision-engineered details for optimal performance, with a focus on safety and reliability. ESD edge trims ensure seamless conductivity and static dissipation across the entire floor system. Each component undergoes stringent epoxy powder-coated anti-rust treatment, guaranteeing resistance to corrosion in moist or severe environments. Multiple anti-static laminate options (HPL, PVC, ceramic) provide customizable aesthetics while maintaining 10^4–10^9Ω surface resistance. Reinforced bolted stringers enhance structural stability, supporting point loads up to 890kg, contributing to its reliability. Fire-rated cores meet ASTM E84 Class 1 standards, ensuring safety. Optional gasket-sealed edges create air-tight compartments for clean room or pressurized applications, highlighting its flexibility in terms of technical specifications.
Product Qualification
FINECO's cementitious raised floor data center represents the pinnacle of quality and durability. It is crafted from premium materials and manufactured with precision. The key components, featuring high-grade ST14 and SPCC steels known for their exceptional strength, corrosion resistance, and formability, contribute to the overall excellence of the data center floor. This ensures that it has structural integrity under demanding conditions and is a top choice for data center
The incorporation of lightweight foam concrete further enhances performance. It reduces the overall weight and offers superior thermal insulation, sound absorption, and eco-friendly characteristics. The production leverages heavy-duty, high-tonnage presses. These presses deliver uniform pressure and meticulous shaping, eliminating material flaws and ensuring dimensional accuracy.
The synergy between advanced materials and industrial-grade equipment results in products that consistently outperform industry standards for longevity, reliability, and operational excellence, meeting the highest customer expectations.
Shipping and Package
FAQ
Q: 1 Can cementitious raised floor data center be adjusted after installation?
A: Yes. Adjustable pedestals facilitate easy height changes for accommodating new equipment or rerouting cables. The option to add or remove panels is available, emphasizing the ease with which raised floors can be modified to meet evolving requirements.
Q: 2. What issues might I encounter with cementitious raised floor data center?
A: Issues that could arise include panel deformation from excessive weight, cable congestion affecting airflow, or loose tiles leading to trip hazards. To ensure safety, regular maintenance and compliance with load limits are essential.
Q: 3. Can I install a cementitious raised floor data center myself?
A: While DIY installation is possible for simple layouts, it is recommended to opt for professional installation for complex projects. Incorrect assembly has the potential to compromise structural integrity, cable management, or safety.
Q: 4. Where can I find more resources or support?
A: For your cementitious raised floor data center, your supplier is ready to provide you with technical guides, installation videos, and the benefit of onsite consultations. And if you need more, industry associations such as BICSI (Building Industry Consulting Services International) have a treasure trove of best practices and training materials waiting for you.
Q: 5. How do cementitious raised floor data center improve airflow in data centers?
A: By establishing a plenum beneath the floor, cool air is effectively distributed via perforated tiles or vents directly to server racks. The resulting hot air is expelled above, forming a closed-loop cooling system that significantly boosts energy efficiency and mitigates the formation of hotspots.
