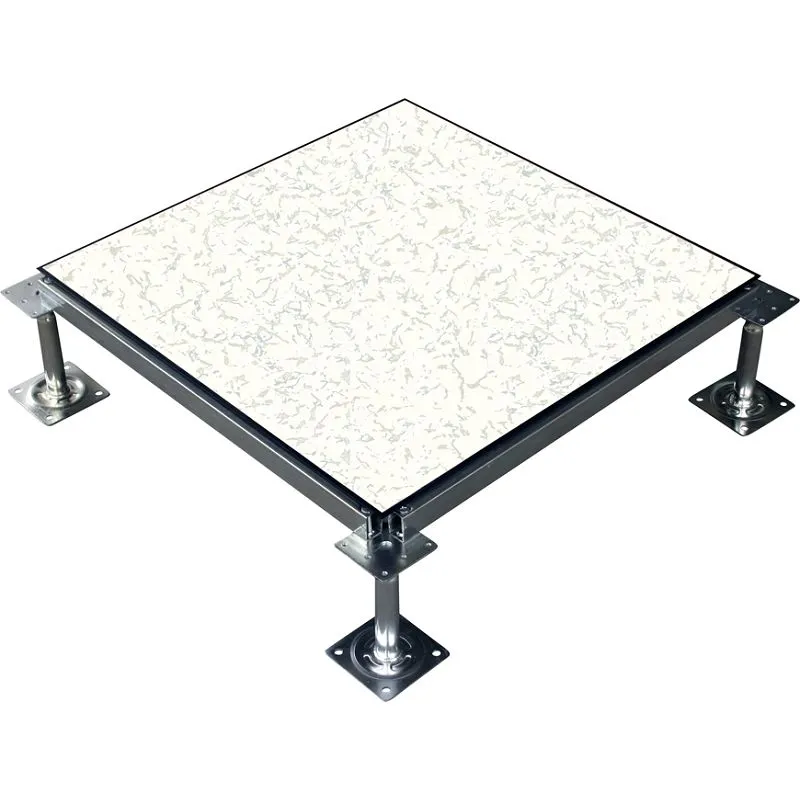

Crafted for contemporary facilities, FINECO's low profile data center raised access floor provides remarkable durability, seamless cable management, and superior load-bearing capacity. Its modular construction facilitates rapid installation and flexibility for reconfiguration. Featuring anti-static and fire-resistant characteristics, it ensures a safer, more organized environment. Ideal for data centers, offices, and industrial spaces-enhance efficiency and aesthetics with a solution designed to endure.
Product specification
|
Model |
Concentrated Load |
Impact Load |
Ultimate Load |
Uniform Load |
Rolling Load (N) |
||
|
LB |
N |
N |
N |
N/㎡ |
10 times |
10000 times |
|
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
* According to CE& CISCA's recommended test procedures for Access Floors
600*600mm/24'*24' (610*610mm) available
Product feature and application
FINECO's low profile data center raised access floor offers robust and dependable solutions for contemporary infrastructure requirements. Fabricated from high-strength, anti-corrosion steel with fire-resistant coatings, these panels provide exceptional load-bearing capacity and enduring durability. The modular architecture enables swift installation, effortless reconfiguration, and seamless access to underfloor utilities, boosting operational efficiency. Integrated cable management channels enhance airflow and organize power/data cabling while reducing clutter. Perfect for challenging environments like data centers, industrial facilities, command control rooms, and laboratories, steel raised floors guarantee safety, adaptability, and adherence to international standards, accommodating dynamic spatial needs with minimal maintenance.
Product details
The FINECO low profile data center raised access floor boasts precision-engineered features for peak performance. ESD edge trims ensure flawless conductivity and static dissipation throughout the floor system. Each panel undergoes stringent epoxy powder-coated anti-rust treatment, ensuring corrosion resistance in moist or severe environments. A variety of anti-static laminate options (HPL, PVC, ceramic) offer customizable aesthetics while maintaining 10^4–10^9Ω surface resistance. Reinforced bolted stringers boost structural stability, supporting point loads up to 890kg. Fire-rated cores meet ASTM E84 Class 1 standards. Optional gasket-sealed edges form air-tight compartments for clean room or pressurized applications, showcasing versatility across technical specifications.
Product Qualification
The FINECO low profile data center raised access floor is crafted to meet the utmost standards of quality and durability, beginning with superior materials and precise manufacturing. Essential components are made from high-grade ST14 and SPCC steels, celebrated for their remarkable strength, corrosion resistance, and formability, guaranteeing structural integrity in demanding situations.
The incorporation of lightweight foam concrete boosts performance by cutting down overall weight and offering excellent thermal insulation, sound absorption, and eco-friendly attributes. Manufacturing utilizes robust, high-tonnage presses that apply consistent pressure and precise shaping, eradicating material defects and ensuring dimensional accuracy.
The blend of advanced materials and industrial-grade equipment yields products that constantly surpass industry standards for longevity, reliability, and operational excellence, fulfilling the most stringent customer expectations.
Shipping and Package
FAQ
Q: 1. What is a low profile data center raised access floor system?
A: A low profile data center raised access floor is a structural assembly of interlocking panels and support pedestals that creates an elevated platform above the existing floor. It facilitates the installation of cables, utilities, and HVAC systems beneath the floor, offering easy access for maintenance and flexibility in layout adjustments.
Q: 2. What materials are low profile data center raised access floor made of?
A: Panels are often made of steel with a cement or laminate surface, or aluminum for lighter weight. Also, there are woodcore and calcium sulphate core. Pedestals and supports are typically steel or aluminum. Anti-static finishes are common in environments with electronic equipment to prevent static discharge.
Q: 3. Can low profile data center raised access floor be adjusted after installation?
A: Yes. Certainly. The adjustable pedestals permit height adjustments to cater to new equipment or the rerouting of cables. It is possible to add or remove panels, rendering raised floors highly adaptable to changing requirements.
Q: 4. How do low profile data center raised access floor improve airflow in data centers?
A: By forming a plenum under the floor, cool air is circulated through perforated tiles or vents to server racks. Hot air is discharged above, establishing a closed-loop cooling system that boosts energy efficiency and avoids hotspots.
Q: 5.What is the lifespan of a low profile data center raised access floor?
A: By forming a plenum under the floor, cool air is circulated through perforated tiles or vents to server racks. Hot air is discharged above, establishing a closed-loop cooling system that boosts energy efficiency and avoids hotspots.
