One of the best elevated floor solutions, FINECO calcium sulphate access floor system is frequently utilized in data centers and office spaces. To provide a green setting for events with elevated floors, we utilize natural CaSO4 1/2H2O. Our panel has a high loading capacity due to its high density, high purity, and high strength kraft paper.
Product specification
|
Model |
Concentrated load |
Impact load (N) |
Ultimate load (N) |
Uniform Load (N/m2) |
Rolling load (N) |
||
|
LB |
N |
10 times |
10000 times |
||||
|
FS662 |
662 |
2950 |
445 |
8850 |
1250 |
2946 |
2356 |
|
FS800 |
800 |
3560 |
536 |
10680 |
16100 |
3560 |
2670 |
|
FS1000 |
1000 |
4450 |
670 |
13350 |
23000 |
4450 |
3560 |
|
FS1250 |
1250 |
5560 |
780 |
16680 |
33000 |
5560 |
4450 |
|
FS1500 |
1500 |
6660 |
1005 |
19980 |
34500 |
6675 |
5340 |
|
FS2000 |
2000 |
8900 |
1340 |
26700 |
46000 |
8900 |
7120 |
Product feature and application
Feature:
- High flexibility to adapt to an updating application
- Anti-static, high dimensional precision, strong loading ability and shockproof, fireproof
- High loading capacity to meeting various requirement of application
- Adjustable height for pedestal, assembly agility, large wire, good exchangeability
- Highly resistant to changes in temperature and humidity, preventing the expansion, contraction, and delamination issues
- Non-combustible material with excellent fire resistance, Class A fire rating enhancing safety in environments
- Environmentally friendly calcium sulfate board, high recycling content almost 100%, reusable in different locations low resource and power consumption on production
Application:
- Office, commercial complex, data center, server room, advanced manufacturing etc.
Product details

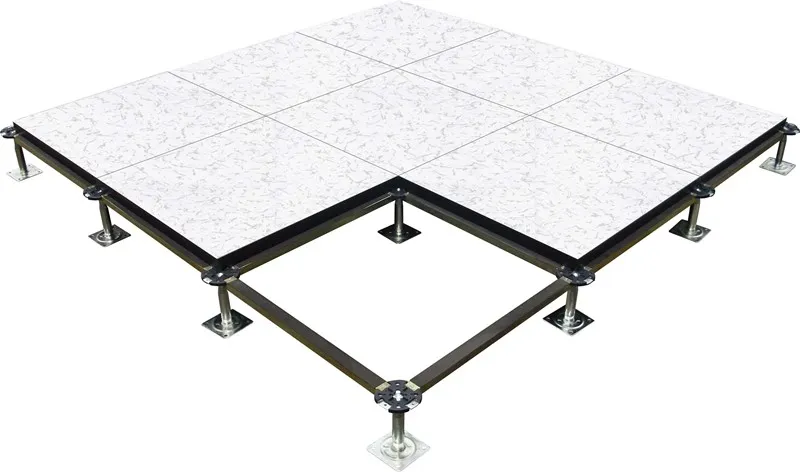

Natural gypsum and reinforced plant fibers are combined, compressed, and cured to create the high-density board that makes up the core of FINECO calcium sulphate access floor system. Usually, it is covered with sheets of galvanized steel or laminated with various finishes on top and galvanized steel/aluminum foil on the bottom. To prevent moisture damage and guarantee dimensional stability, the edges are sealed with PVC or ABS trim. The surface may support a variety of finishes, including antistatic HPL, PVC, ceramic tiles, carpet, LVT, or wood floors, to satisfy both practical and aesthetic needs. Services including electrical, data, and HVAC systems may reach the accessible void under the floor created by the panels' installation atop an adjustable pedestal and stringer system.
Product Qualification
Quality is always the first concern when it comes to raw materials, production, internal testing, and packaging. To ensure the aluminum access floor panels meet or exceed industry standards for performance, durability, and safety, FINECO uses a rigorous quality control process that involves thorough testing at many manufacturing stages. These assessments include specific tests for critical attributes including dimensional accuracy, load-bearing capacity, and flatness.

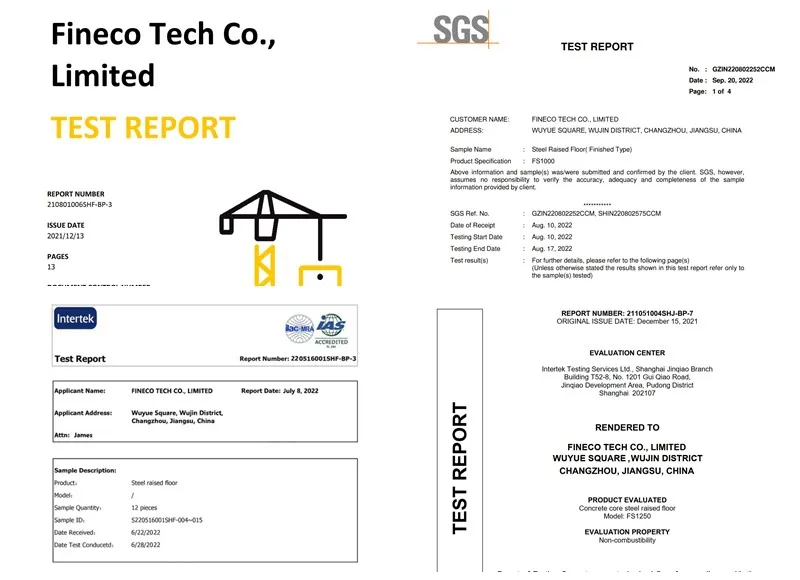

The products are certified according to CE, CISCA, MOB recommended test procedure to ensure high quality requirement from global market.
Delivery, shipping and service
Delivery: The lead time is usually 15 working days for order within 5000 sqm. More quantity might be arranged in accordance with specific needs. From raw materials to finished goods, quality is never compromised despite the short lead time. During manufacture, a comprehensive quality control process will be rigorously adhered to.
Shipping: Whether shipping by air or sea, every item will be carefully wrapped in a pallet or box to ensure its condition when it is delivered to customers. Additionally, several shipping conditions, such as EXW, FOB, CFR, CIF, etc., are available for both FCL and LCL.
Service: To ensure that customers have a positive experience, products, design, and technical support are constantly available. Regardless of whether a question is asked before or after a transaction, it will be answered within 24 hours.
FAQ
Q: How is an elevated floor installed?
A: Making sure the substrate is exactly level is the first step in the procedure. Support pedestals are attached to load-bearing beams and placed at predetermined locations. The framework is covered with panels that are sealed at the seams and adjusted in height using screw mechanisms. Gasket installation and edge protection are last finishes.
Q: How much weight can a raised floor normally support?
A: A raised floor's weight capacity varies greatly, although it usually ranges from 662 to 2,000 pounds per square foot. Higher capacity could be needed for vital infrastructure, such server rooms. Manufacturer instructions should always be adhered to.
Q: How long does raised floor installation take?
A: Installation timelines vary based on the area size and complexity. Small spaces can be completed in days, while large data centers may take weeks. Planning and coordination with HVAC and electrical teams are crucial.
